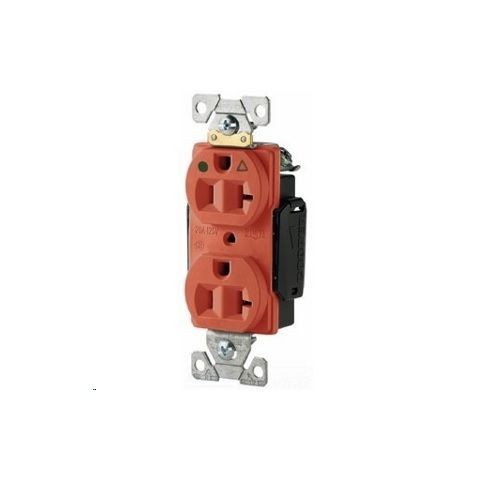

EATON Arrow Hart® IG8300RD IG8300 Duplex Isolated Ground Premium Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
EATON Arrow Hart® IG8300RD IG8300 Duplex Isolated Ground Premium Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU: EAGIG8300RD
Manufacturer Part Number: CWDIG8300RD
UPC: 032664560460
Documents
Features
- Isolated ground premium receptacle
- Exclusive 5-leaf brass line contacts ensure lowest heat rise, smooth plug blade insertion and long-term retention
- Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
- Unique screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 0.03 in (0.76mm) solid brass, nonriveted, integral one-piece isolated grounding shunt system assures ground integrity under heaviest use isolated from common building ground
- High impact and chemical resistant nylon face
- Tapered lead in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal (H-N-G) and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system assures wallplate grounding in grounded metal enclosure
- Screw-Catch feature on duplex devices speeds mounting of wallplates
Specification
| Grade | Hospital |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -4 to 158 deg F |
| Terminal Type | Back and Side Wired |
| Type | Duplex |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL 498 WC-596 E3663, CSA C22.2 No.42 6914 , NAFTA Compliant, RoHS Compliant |
| Amperage Rating | 20 A |
| Dimensions | 4.19 in H x 1.3 in W x 0.89 in D |
| Color | Red |
| Horsepower | 1 hp |
