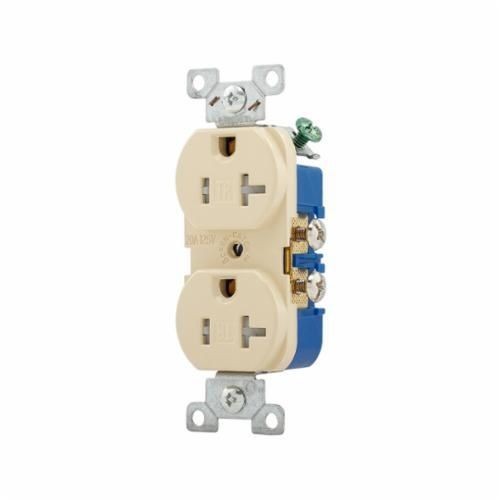

EATON TR370V-BOX Duplex Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
EATON TR370V-BOX Duplex Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: EAGTR370V-BOX
Manufacturer Part Number: TR370V-BOX
UPC: 032664729607
Documents
Features
- Brass contact
- Grounding, standard style
- 14 to 10 AWG wire size
- Flush mounting
- Screw connection
- Tamper resistant receptacles provide compliance with 2014 NEC® Article 406.12 which states that all 15 and 20 A, 125 VAC receptacles installed in dwelling units must be tamper resistant
- Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations
- Patented built-in wire looper for pre-looping
- High impact resistant thermoplastic face and back body eliminates breakage
- Double wipe ground contacts ensure long term ground retention
- Easy access split circuit break off tab
- Tri-combo screws accept slotted, phillips, and robertson-head tools for installation flexibility
- Terminal screws backed out and ready for wiring
Specification
| Grade | Standard |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | EAGTR370V-BOX |
| Color | Ivory |
| Dimensions | 1.31 in L x 0.74 in W x 4.19 in H |
| Terminal Type | Side Wire |
| Type | Tamper Resistant |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cULus, UL 498, File No. E15058 Listed, NOM Certified, NAFTA Compliant |
