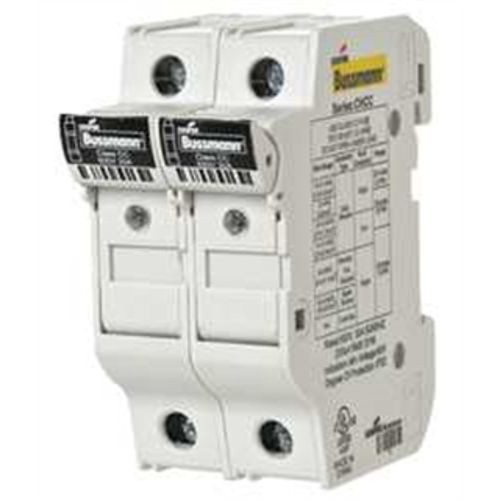

Bussmann® CHCC2DIU Finger-Safe Modular Fuse Holder With LED Indicator, 600 VAC, 30 A, 18 - 4 AWG Wire, 2 Poles

Selected CHCC2DIUBussmann® CHCC2DIU Finger-Safe Modular Fuse Holder With LED Indicator, 600 VAC, 30 A, 18 - 4 AWG Wire, 2 Poles
CHCC2DIUBussmann® CHCC2DIU Finger-Safe Modular Fuse Holder With LED Indicator, 600 VAC, 30 A, 18 - 4 AWG Wire, 2 Poles

Short Description

Eaton’s Bussmann® series CH DIN-Rail fuse holders are for UL Class CC and midget fuses, and IEC 10x38 fuses. They are available with and without indication in 1-, 2- and 3-pole IP20 finger-safe versions. A variety of accessories extends their application flexibility and they may be ganged together to meet specific application requirements.

Features

  • Withstands 200 kA (RMS Symmetrical) interrupt rating
  • Toolless ganging for multiple poles
  • Wire strip gauge
  • Captive fully backed out phil-slot screw
  • NO 18 - 4 AWG Cu wire size

Specification

Fuse Diameter
10 mm
Fuse Holder Code
W
Fuse Length
38 mm
Material
Polyester
Mounting Type
DIN Rail
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Class
CC
Color
White
Voltage Rating
600 VAC
Application
For electrical system
Standard & Approvals
UL File No.E14853, Guide IZLT, IZLT2, CSA File No. 47235, Class 6225-01, CCC Certified, RoHS Complaint
Suitable For Use With
KTK-R, LP-CC and FNQ-R Series Class CC Fuses
Temperature Rating
-20 to 90 deg C
Dimensions
2.909 in H x 1.378 in W x 3.275 in D
Connection Type
Spade Lug
Catalog ID
BUSCHCC2DIU
