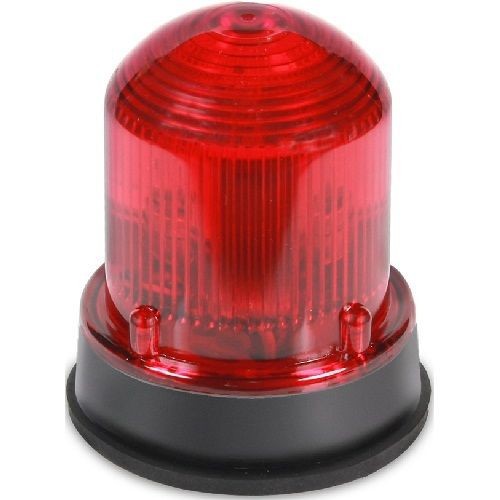

Edwards Signaling™ AdaptaBeacon® 125LEDFR120A Standard Flashing Beacon, 120 VAC, LED Lamp, 3-1/4 in Dia, Panel Mount, Red Lens

Selected Edwards Signaling™ AdaptaBeacon® 125LEDFR120A Standard Flashing Beacon, 120 VAC, LED Lamp, 3-1/4 in Dia, Panel Mount, Red Lens
Edwards Signaling™ AdaptaBeacon® 125LEDFR120A Standard Flashing Beacon, 120 VAC, LED Lamp, 3-1/4 in Dia, Panel Mount, Red Lens

Short Description

The Edwards 104FIN series AdaptaBeacon flashing halogen lights and 104FLED series AdaptaBeacon flashing LED lights are designed to provide a bright visual indication utilizing special optics within a shatter resistant polycarbonate lens mounted on a polycarbonate/ABS blend base. Suitable for indoor or outdoor installation. When mounted outdoors lens should be mounted facing up. May be panel mounted using the provided locknut or conduit mounted. An integral double threaded (internal/external) mounting nipple accommodates 3/4" (19mm). Double (internal/external) threaded mounting nipple suitable for direct panel mounting or 1/2" (13 mm) conduit mounting. Often used to signal malfunctions in equipment, such as assembly line jams. Can warn personnel that they are entering a restricted area or an area of high danger. They can advise personnel in manufacturing and process areas when an operation is starting or stopping. Ideal for use where many multiple smaller flashing lights are specified.

Features

  • Double threaded for panel mounting or 1/2 in conduit mounting
  • Locknut 1.3625 in OD (provided for use when direct panel mounting)
  • 18 in wire leads
  • 28 lumens

Specification

Lamp Type
LED
Lens Color
Red
Mounting Type
Panel
NEMA Rating
NEMA 4X
Minimum Order Qty
1
Order Interval
1
Voltage Rating
120 VAC
Standard & Approvals
UL 1638, cUL Listed C22.2 No 205, CE Certified
Dimensions
3-7/8 in H x 3-1/4 in W
Diameter
3-1/4 in
Catalog ID
EDW125LEDFR120A
Average Life
120000 hr
Amperage Rating
0.025 A
