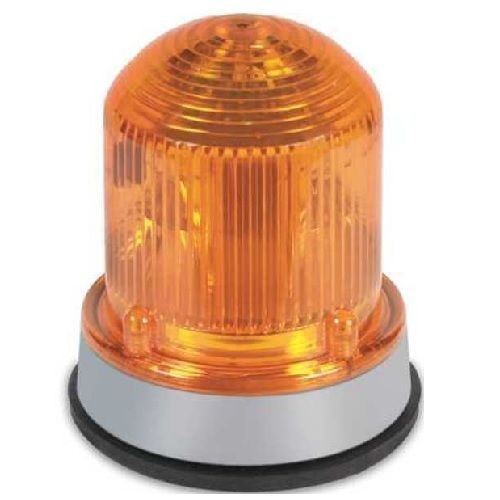

Edwards Signaling™ 125LEDFA120A Standard Flashing Beacon, 120 VAC, LED Lamp, 3-1/4 in Dia, Panel Mount, Amber Lens

Selected Edwards Signaling™ 125LEDFA120A Standard Flashing Beacon, 120 VAC, LED Lamp, 3-1/4 in Dia, Panel Mount, Amber Lens
Edwards Signaling™ 125LEDFA120A Standard Flashing Beacon, 120 VAC, LED Lamp, 3-1/4 in Dia, Panel Mount, Amber Lens

Documents

Short Description

The Edwards 125 Class Standard LED beacons are UL and cUL listed signaling appliances. Two versions of 125 Class Standard LED Beacons are available: Flashing 65 FPM (125LEDF) and Steady-On (125LEDS). Both versions feature a corrosion-resistant Type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. Both the Flashing LED and Steady-On LED beacons are available with either a black or gray base and amber, blue, green or red lens.

Features

  • Gray or black glass filled nylon base
  • Protective wire guard available, Catalog number 125GRD
  • Gray colored base
  • Immune to shock and vibration
  • 1/2 in internal thread, 3/4 in external thread
  • 33 percent Glass filled nylon base, polycarbonate lens

Specification

Housing Material
Nylon Base/Polycarbonate Lens
Lamp Type
LED
Lens Color
Amber
Mounting Type
Panel
NEMA Rating
NEMA 4X
Series
125LED
Shape
Cylindrical
Temperature Rating
-31 to 150 deg F
Type
Standard
Voltage Rating
120 VAC
Standard & Approvals
UL 1638, cUL Listed
Application
For indoor/outdoor applications
Average Life
100000 hr
Flash Rate
65 fpm
Diameter
3-1/4 in
Dimensions
3-7/8 in H
Amperage Rating
0.097 A
