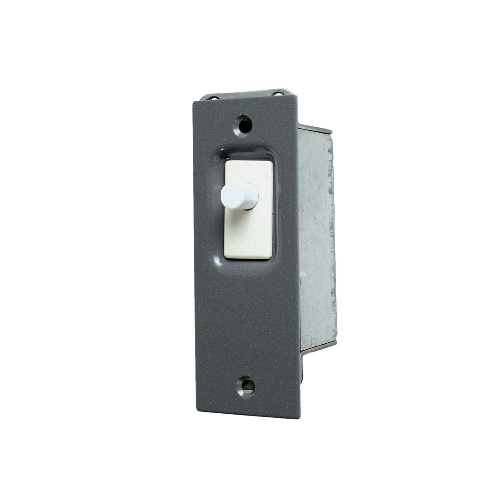

Edwards Signaling™ 502A 500 Electric Door Light Switch, 120 VAC, 6 A, 1NC Contact, Gray
Edwards Signaling™ 502A 500 Electric Door Light Switch, 120 VAC, 6 A, 1NC Contact, Gray
SKU: EDW502A
Manufacturer Part Number: 502A
UPC: 782640245729
Documents
Features
- All purpose electric door switch
- The switch mounts using the mounting holes on 3 1/4 in centers
- Faceplate for 502A: 4 in (102 mm) H x 1-1/2 in (38 mm) W
Specification
| Mounting Type | Flush |
|---|---|
| Series | 500 |
| Specifications | 6 A at 120 VAC Contact |
| Terminal Type | Wire |
| Type | Electric |
| Voltage Rating | 120 VAC |
| Application | For closet doors, dark rooms and walk-in refrigerators, may be used on either sliding or hinged doors use |
| Standard & Approvals | UL and UR Listed |
| Dimensions | 2-15/16 in H x 1-11/32 in W x 1-3/4 in D |
| Actuator | Plunger |
| Color | Gray |
| Contact Configuration | 1NC |
| Amperage Rating | 6 A |
