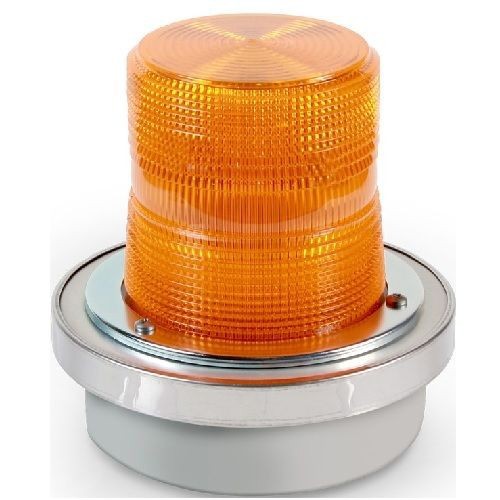

Edwards Signaling™ AdaptaBeacon® 50A-N5-40WH Flashing Beacon, 120 VAC, Halogen Lamp, 6 in Dia, Surface Mount, Amber Lens

Selected Edwards Signaling™ AdaptaBeacon® 50A-N5-40WH Flashing Beacon, 120 VAC, Halogen Lamp, 6 in Dia, Surface Mount, Amber Lens
Edwards Signaling™ AdaptaBeacon® 50A-N5-40WH Flashing Beacon, 120 VAC, Halogen Lamp, 6 in Dia, Surface Mount, Amber Lens

Documents

Short Description

The Edwards 50 Series AdaptaBeacon flashing lights are designed to provide a bright visual indication utilizing special optics within a shatter resistant polycarbonate lens. The polycarbonate double fresnel lens ensures efficient light dispersion. This is accomplished with a series of complementing fresnels that cause the dome to "fill" when the light is operating. Beam distance is also increased with fresnel lenses. Lenses are available in six colors: red, amber, blue, green, magenta, and clear.

Features

  • Double fresnel lens is made of shatter resistant polycarbonate
  • 1/2 in NPT conduit or surface mounting
  • Cast metal base, polycarbonate lens
  • Shatter resistant

Specification

Housing Material
Cast Metal Base/Polycarbonate Lens
Lamp Type
Halogen
Lens Color
Amber
Light Output
265 Lumens
Mounting Type
Surface
Series
50
Temperature Rating
-35 to 66 deg C
Voltage Rating
120 VAC
Wattage
40 W
Standard & Approvals
cUL Listed, RoHS Compliant
Amperage Rating
0.3 A
Dimensions
5-7/8 in H
Application
For indoor/outdoor applications
Average Life
25000 hr
Diameter
6 in
Flash Rate
65 fpm
