Edwards Signaling™ 6538-G5 CFA Call for Assistance Kit, 24 VAC/VDC, 3 Pieces

Selected Edwards Signaling™ 6538-G5 CFA Call for Assistance Kit, 24 VAC/VDC, 3 Pieces
Edwards Signaling™ 6538-G5 CFA Call for Assistance Kit, 24 VAC/VDC, 3 Pieces

Short Description

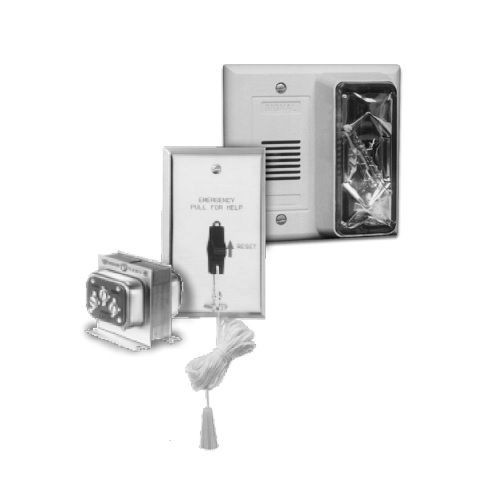

The Edwards 6538-G5 24 VDC Call For Assistance system is designed for areas where a call-for-help or an emergency switch is required. The kit consists of a catalog no. 6536-G5 horn/strobe for audible and visual signaling, a catalog no. 6537 emergency pull cord station and a catalog no. 592 transformer. Each component may also be ordered individually. Use in health care facilities, public rest rooms and handicapped areas.

Features

  • Double pole single throw switch
  • High intensity strobe
  • Easy-to-install
  • Visual and audible signaling
  • Resettable at the initiating station
  • 0.125 A at 24 VDC, 0.175 A at 24 VAC 50/60 Hz

Specification

Number of Pieces
3
Series
CFA
Specifications
120 VAC Primary, 24 VAC Secondary, 175 mA at 24V 50/60 Hz Horn/Strobe Current Draw, 125 mA at 24 VDC Horn/Strobe Current Draw, 50 cd On-Axis Strobe Output, Xenon Lamp
Suitable For Use With
Single Gang Box
Voltage Rating
24 VAC/VDC
Application
For health care facilities, public rest rooms and handicapped areas
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 1638
Color
Neutral White
Includes
6536-G5 Clear Lens Horn/Strobe, 592 Transformer and 6537 Pull Cord Switch
