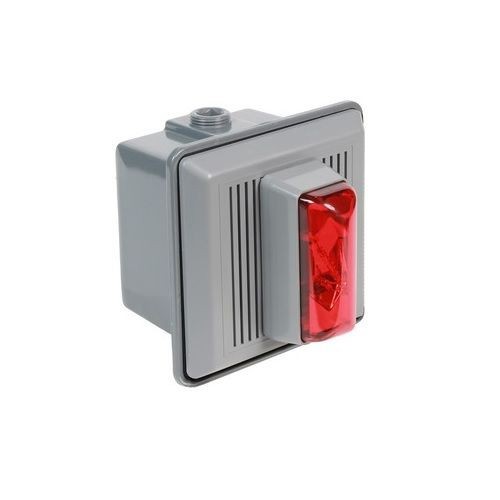

Edwards Signaling™ 868STRR-N5 860 Industrial Electronic Horn/Strobe, 120 VAC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Gray Lens, UL 1638, UL 464

Selected Edwards Signaling™ 868STRR-N5 860 Industrial Electronic Horn/Strobe, 120 VAC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Gray Lens, UL 1638, UL 464
Edwards Signaling™ 868STRR-N5 860 Industrial Electronic Horn/Strobe, 120 VAC, Xenon Lamp, 100/90 dB Sound, Surface Mount, Gray Lens, UL 1638, UL 464

Documents

Short Description

Edwards 860 Series xenon strobe beacons with horns are bright, low current, high decibel, combination signals designed for use where a distinctive visual or audible signal is required. The housing is made of gray, engineered thermoplastic. The strobe and horn can be operated independently. The 867STR (indoor) and 868STR (outdoor) Series can be surface mounted on the supplied surface box. The 869STR and 869DSTR Series beacons can be flush mounted. They are designed to mount in a standard 4 in (102mm) square electrical box with extension ring (total min. depth of 3 in (76mm) not supplied.) The 869DSTR Series is Diode Polarized for use in electrically supervised circuits.

Features

  • Low current draw, bright, high decibel
  • Terminals for easy wiring
  • Operating indoor temperature range at 85 percent relative humidity at 86 deg F (30 deg C), 32 deg F to 120 deg F (0 to 49 deg C) variable ambient temperature
  • Operating outdoor temperature range at 95 percent relative humidity at 86 deg F (30 deg C), -31 deg F to 150 deg F (-35 deg C to 66 deg C) variable ambient temperature
  • Combination signals designed for use where a distinctive visual or audible signal is required

Specification

Lamp Type
Xenon
Lens Color
Red
Light Output
21 cd
Material
Thermoplastic
Mounting Type
Surface
Series
860
Temperature Rating
-31 to 150 deg F
Tone Frequency
50/60 Hz
Type
Industrial
Voltage Rating
120 VAC
Dimensions
5-1/2 in H x 5-1/2 in W x 5/8 in D
Flash Rate
60 fpm
Standard & Approvals
RoHS Compliant, UL 1638, UL 464 Listed
Sound Level
100/90 dB at 1 m/10 ft
Application
For outdoor use
Amperage Rating
0.021 A
