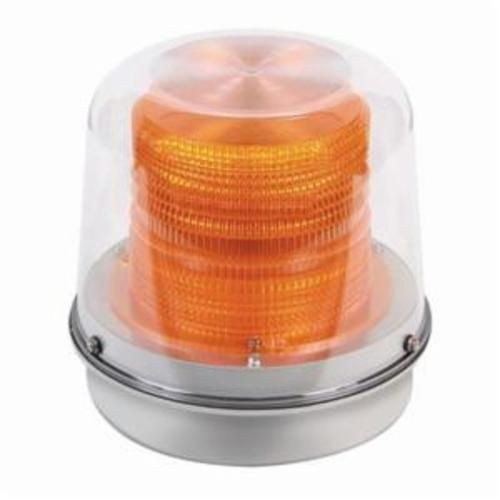

Edwards Signaling™ 94A-N5 Heavy Duty Strobe Beacon, 120 VAC, Xenon Lamp, Amber, Surface Mounting, Specifications Met: UL 1638, cUL Listed, NEMA 4X

Selected 94A-N5Edwards Signaling™ 94A-N5 Heavy Duty Strobe Beacon, 120 VAC, Xenon Lamp, Amber, Surface Mounting, Specifications Met: UL 1638, cUL Listed, NEMA 4X
94A-N5Edwards Signaling™ 94A-N5 Heavy Duty Strobe Beacon, 120 VAC, Xenon Lamp, Amber, Surface Mounting, Specifications Met: UL 1638, cUL Listed, NEMA 4X

Documents

Short Description

Edwards 94 Series Xenon strobe beacons are Heavy duty visual signals suitable for use where more frequent and longer lasting signaling cycles may be required. Optically designed fresnel lenses improve viewer perception for indoor and outdoor applications. The base is cast metal and can be utilized as a junction box, The 94DF Series offers a double flash model that doubles the apparent strobe on-time (50 double flashes per minute). Trigger and timing circuits are included as integral parts of the power supply.Replacement costs are reduced, as it is necessary to replace only the strobe tube. The 94DV2 Series Division 2 Xenon strobe beacons are high profile visual signals suitable foroutdoor and wet locations requiring a UL Listed, NEMA Type 4X enclosure. The 94DDV2 Series is Diode Polarized for use in electrically supervised circuits. Both versions can be conduit mounted.

Features

  • Cast base can function as a junction box
  • Optically designed fresnel lenses
  • For outdoor use, lens should face up
  • 120 VAC at 50/60 Hz
  • 3/4 in conduit mount

Specification

Housing Material
Cast Metal Base
Lamp Type
Xenon
Lens Color
Amber
Light Output
800000 cd
Mounting Type
Surface
NEMA Rating
NEMA 4X
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.1 A
Average Life
3000 hr
Catalog ID
EDW94A-N5
Dimensions
7-7/8 in H
Flash Rate
65 fpm
Flash Type
Single
Series
94
Shape
Cylindrical
Type
Heavy Duty
Voltage Rating
120 VAC
Standard & Approvals
UL 1638, cUL Listed
Application
For indoor/outdoor applications
