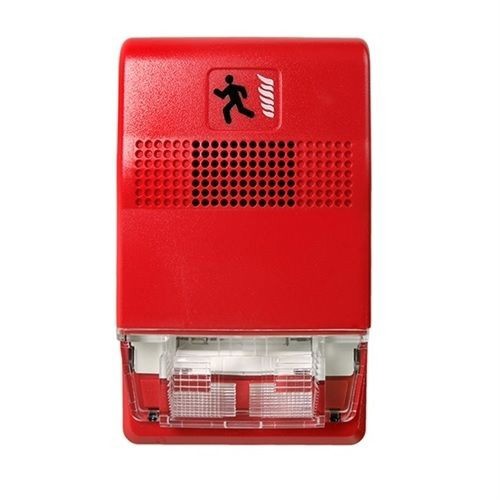

Edwards Signaling™ Genesis® EG1R-HDVM Wall Horn/Strobe, 24 VDC, Xenon Lamp, 94.4/84.4 dB Sound, Wall Mount, Red Lens, UL/ULC Listed, CE, FCC, FM, MEA, CE Certified

Selected Edwards Signaling™ Genesis® EG1R-HDVM Wall Horn/Strobe, 24 VDC, Xenon Lamp, 94.4/84.4 dB Sound, Wall Mount, Red Lens, UL/ULC Listed, CE, FCC, FM, MEA, CE Certified
Edwards Signaling™ Genesis® EG1R-HDVM Wall Horn/Strobe, 24 VDC, Xenon Lamp, 94.4/84.4 dB Sound, Wall Mount, Red Lens, UL/ULC Listed, CE, FCC, FM, MEA, CE Certified

Documents

Short Description

The Genesis line of wall mount horns and strobes are small, compact audible-visible life safety signaling devices. Protruding no more than one inch from the wall, Genesis horns and horn strobes feature textured housings in white or red. Edwards Genesis strobes do not require bulky specular reflectors and lenses. The patented cavity design conditions light to produce a highly controlled distribution pattern. Full Light strobe technology produces a smooth light distribution pattern. This ensures the entire coverage area receives consistent illumination from the strobe flash. The strobes are designed to flash at the same rate (synchronized) when used with a compatible synchronization source such as the EG1M-RM and EG1M synchronization modules, E-FSC and E-FSA fire panels, and EBPS series booster supplies. Genesis strobes and horn strobes feature selectable candela output with a switch located on the bottom of the device. The candela setting is visible even after the device is installed. Models are also available with fixed 15/75 cd output.

Features

  • Low profile design
  • Field selectable candela output via switch
  • Field selectable for high or low dB horn output and temporal or steady horn output
  • Fits standard single-gang electrical boxes no extension ring or trim plate required
  • Low current draw
  • Temporal (default) or steady horn
  • No visible mounting screws
  • Ultra-slim protrudes less than one inch from wall
  • Attractive appearance
  • 0.129 A, 0.167 A, 0.281 A, 0.337 A High dB current, 0.122 A, 0.160 A, 0.274 A, 0.330 A low dB current at 24VDC operating voltage
  • 0.176 A, 0.230 A, 0.397 A, 0.443 A High dB current, 0.162 A, 0.216 A, 0.383 A, 0.429 A low dB current at 24Vfwr operating voltage
  • Selectable 15, 30, 75, 110 candela rating
  • 98.6/88.6 dB at 1 m/10 ft steady Tone
  • Exclusive FullLight® strobe technology
  • 93% humidity range

Specification

Lamp Type
Xenon
Lens Color
Red
Light Output
15/30/75/110 cd
Mounting Type
Wall
Voltage Rating
24 VDC
Dimensions
4-1/2 in H x 2-3/4 in W x 13/16 in D
Amperage Rating
0.129 - 0.429 A
Standard & Approvals
CE Certified, RoHS Compliant, UL Listed, ULC Listed
Temperature Rating
32 - 120 deg F
Sound Level
94.4/84.4 dB at 1 m/10 ft
Series
Genesis®
