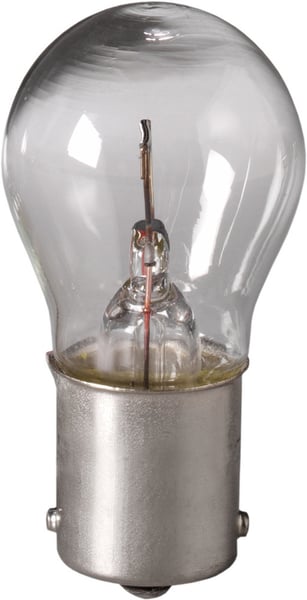

EIKO® 1156 Miniature Lamp, 27 W, BA15s Single Contact Bayonet Incandescent Lamp, S6 Shape, 400 Lumens

Selected Data-Spec SheetEIKO® 1156 Miniature Lamp, 27 W, BA15s Single Contact Bayonet Incandescent Lamp, S6 Shape, 400 Lumens
Data-Spec SheetEIKO® 1156 Miniature Lamp, 27 W, BA15s Single Contact Bayonet Incandescent Lamp, S6 Shape, 400 Lumens

Documents

Short Description

Incandescent lamps are still commonly used in homes and businesses, and with our wide selection, we have enough shapes, wattages, and finishes to fit almost every application and need. Many of our incandescent lamps are also available in an extended life, 130 volt version, with even more energy efficient alternatives coming soon.

Specification

Lamp Base
BA15s SC Bayonet
Lamp Type
Incandescent
Lumens
400 Lumens
Shape
S8
Voltage Rating
12.8 VAC
Wattage
27 W
Standard & Approvals
SAE, ANSI Standard, RoHS Compliant
Amperage Rating
2.1 A
Dimensions
1.04 in Dia x 2 in L
Average Life
1200 hr
Filament
C-6
