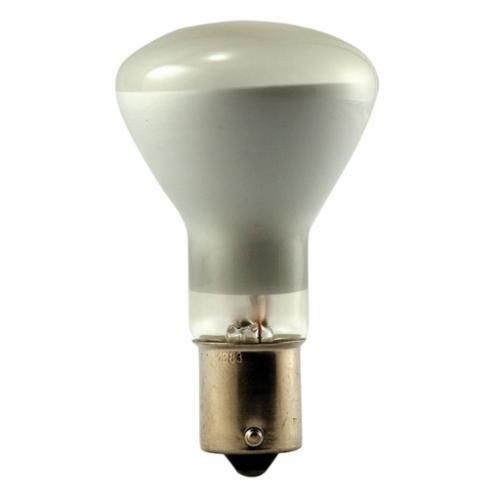

EIKO® 1383 Miniature Lamp, 20 W, BA15s Single Contact Bayonet Incandescent Lamp, R12 Shape, 200 Lumens

Selected 1383EIKO® 1383TF Miniature Lamp, 20 W, BA15s Single Contact Bayonet Incandescent Lamp, R12 Shape
1383EIKO® 1383TF Miniature Lamp, 20 W, BA15s Single Contact Bayonet Incandescent Lamp, R12 Shape

Documents

Short Description

Incandescent lamps are still commonly used in homes and businesses, and with our wide selection, we have enough shapes, wattages, and finishes to fit almost every application and need. Many of our incandescent lamps are also available in an extended life, 130 volt version, with even more energy efficient alternatives coming soon.

Features

  • Top frosted, bottom reflectorized

Specification

Lamp Base
BA15s SC Bayonet
Lamp Finish
Frost
Lamp Type
Incandescent
Lumens
200 Lumens
Shape
R12
Voltage Rating
13 VAC
Wattage
20 W
Standard & Approvals
SAE, ANSI Standard, RoHS Compliant
Amperage Rating
1.5 A
Dimensions
1.55 in Dia x 2.63 in L
Average Life
300 hr
Filament
C-8
