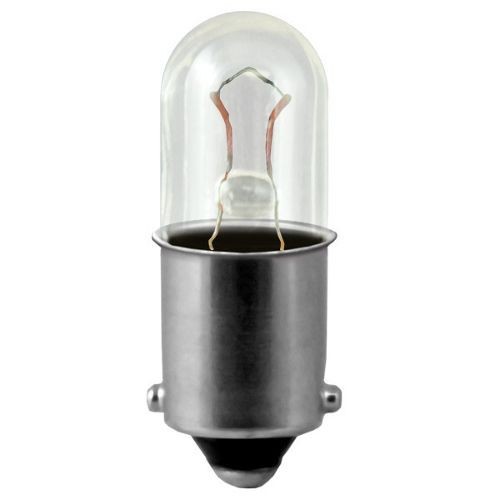

EIKO® 1820 Miniature Lamp, 3 W, BA9s Miniature Bayonet Incandescent Lamp, T3.25 Shape, 20.11 Lumens

Selected EIKO® 1820 Miniature Lamp, 3 W, BA9s Miniature Bayonet Incandescent Lamp, T3.25 Shape, 20.11 Lumens
EIKO® 1820 Miniature Lamp, 3 W, BA9s Miniature Bayonet Incandescent Lamp, T3.25 Shape, 20.11 Lumens

Documents

Short Description

Incandescent lamps are still commonly used in homes and businesses, and with our wide selection, we have enough shapes, wattages, and finishes to fit almost every application and need. Many of our incandescent lamps are also available in an extended life, 130 volt version, with even more energy efficient alternatives coming soon.

Specification

Lamp Base
BA9s Miniature Bayonet
Lamp Finish
Clear
Lamp Type
Incandescent
Lumens
20.11 Lumens
Shape
T3.25
Voltage Rating
28 VAC
Wattage
3 W
Standard & Approvals
SAE, ANSI Standard, RoHS Compliant
Amperage Rating
0.1 A
Dimensions
0.43 in Dia x 1.19 in L
Average Life
1000 hr
Color
White
Filament
C-2F
