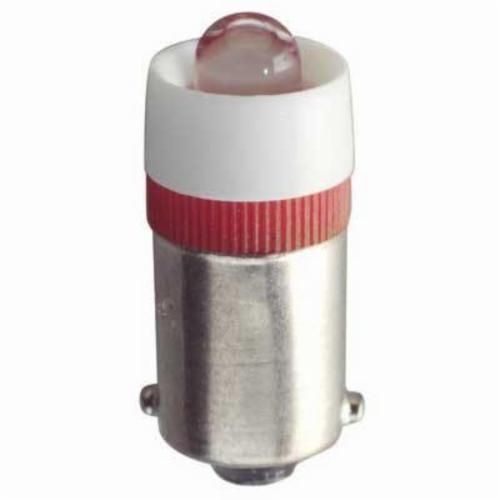

EIKO® LED-24-BA9S-W Miniature Lamp, T-3-1/4 Lamp, BA9s Miniature Bayonet Lamp Base, 2.4 Lumens
EIKO® LED-24-BA9S-W Miniature Lamp, T-3-1/4 Lamp, BA9s Miniature Bayonet Lamp Base, 2.4 Lumens
SKU: EIKLED-24-BA9S-W
Manufacturer Part Number: LED-24-BA9S-W
UPC: 031293026958
Documents
Features
- Replaces 24MB, 28MB, 313, 757, 1818, 1819, 1820, 1843, 1829, 1864, 1873
- 90 deg viewing angle
- Clear lens
- Single led
Specification
| Lamp Base | BA9s Miniature Bayonet |
|---|---|
| Lamp Type | T-3-1/4 |
| Lumens | 2.4 Lumens |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 19 mA |
| Average Life | 30000 hr |
| Catalog ID | EIKLED-24-BA9S-W |
| Color | White |
| Color Rendering Index (CRI) | 67 |
| Dimensions | 0.4 in Dia x 1 in L |
| Voltage Rating | 24 VAC/28 VDC |
