Elastimold® 167ESA-10 Insulated Shielded Elbow Surge Arrester, 43.5 kV Max Discharge, EPDM Rubber, 8.4 kV RMS MCOV Surge protection, 200 A

Selected Elastimold® 167ESA-10 Insulated Shielded Elbow Surge Arrester, 43.5 kV Max Discharge, EPDM Rubber, 8.4 kV RMS MCOV Surge protection, 200 A

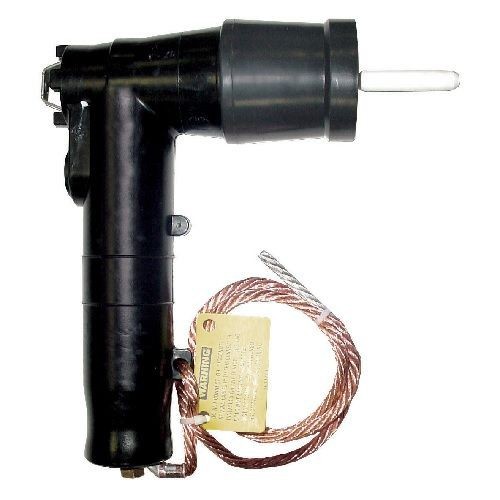

Elastimold® 167ESA-10 Insulated Shielded Elbow Surge Arrester, 43.5 kV Max Discharge, EPDM Rubber, 8.4 kV RMS MCOV Surge protection, 200 A

Short Description

Elastimold® Metal Oxide Varistor (MOV) surge arresters are fully shielded, fully submersible and are equipped with IEEE 386 interfaces for convenient energized connection with other 200 A loadbreak components. Units are compact, allowing installation in existing cabinetry. For application ease, arresters are available in 3 styles, elbow (ESA), parking Stand (PSA) and bushing (BSA). The PSA and BSA arresters permit direct connection eliminating the need for additional accessories. Elastimold® arresters provide high voltage lightning and switching surge protection of transformers, cable, equipment and other components typically located on underground power distribution systems. Proper placement, voltage selection and coordination with riser pole arresters minimizes damaging surge voltages by improving protective margins.

Features

  • EPDM rubber construction - fully shielded and fully submersible for a variety of applications
  • Compact size enables installation in your existing cabinetry, saving you money
  • 4 AWG ground lead tethered to the jacket withstands 10000 A for 10 cycles without fusing
  • Ground lead also controls end plug when ejected, preventing uncontrolled trajectory and maintains the housing shield ground connection after failure
  • 30.5 kV at 1.5 kA/32.5 kV at 3 kA/34.5 kV at 5 kA/38.5 kV at 10 kA/43.5 kV at 20 kA maximum discharge voltage
  • IEEE 386 interfaces provide convenient energized connection with other 200 A loadbreak or deadbreak components

Specification

Material
EPDM Rubber
Maximum Discharge Voltage
43.5
Operating Voltage
15
Amperage Rating
200 A
Application
For providing high voltage lightning and switching surge protection of transformers, cable, equipment and other components typically located on underground power distribution systems
Duty Cycle Voltage
10
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant
Surge Protection Voltage
8.4 kV RMS MCOV
