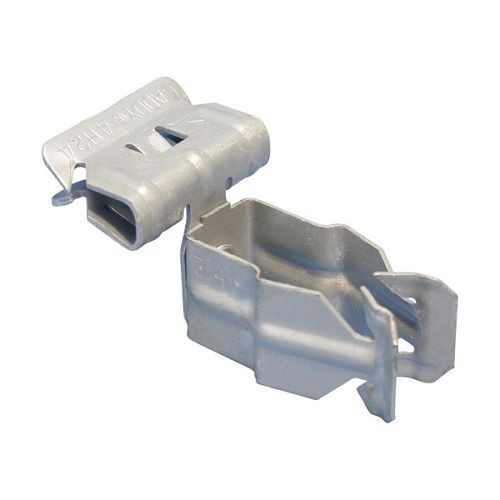

nVent ERICO 12P24SM Conduit to Flange Clip, 3/4 in Conduit, 15 lb Load, 0.866 to 1.181 in OD, Spring Steel
nVent ERICO 12P24SM Conduit to Flange Clip, 3/4 in Conduit, 15 lb Load, 0.866 to 1.181 in OD, Spring Steel
SKU: CAD12P24SM
Manufacturer Part Number: 12P24SM
UPC: 782856112624
Features
- Requires only a hammer to install
- Available for EMT, rigid, IMT and aluminum conduit
- Will pivot thru 360 degree
- 15 lb Static load capacity
- 3/4 in EMT conduit size
Specification
| Load Capacity | 15 lb |
|---|---|
| Material | Spring Steel |
| Mounting Type | Side |
| Outside Diameter | 0.866 to 1.181 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CAD12P24SM |
| Conduit Size | 3/4 in |
| Finish | Caddy Armour |
| Flange Size | 1/8 to 1/4 in |
| Application | Datacom and Low Voltage |
| Standard & Approvals | cULus Listed, RoHS Exempted |
