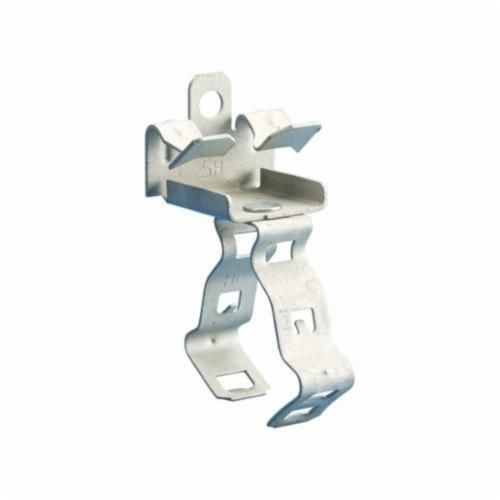

nVent ERICO 6M58 Conduit/Pipe to Flange Clip, 3/8 in Conduit, 75 lb Load, 0.551 to 0.709 in OD, Spring Steel

Selected 812M912nVent ERICO 6M58 Conduit/Pipe to Flange Clip, 3/8 in Conduit, 75 lb Load, 0.551 to 0.709 in OD, Spring Steel
812M912nVent ERICO 6M58 Conduit/Pipe to Flange Clip, 3/8 in Conduit, 75 lb Load, 0.551 to 0.709 in OD, Spring Steel

Documents

Features

  • Supports conduit/pipe or cable from beam flanges
  • Snap close clip pivots a full 360 degree
  • Requires only a hammer to install
  • 14-2 to 12-3 MC/AC cable size
  • 75 lb Static load capacity
  • 3/8 in Rigid conduit size

Specification

Material
Spring Steel
Standard & Approvals
cULus Listed, RoHS Exempted
Load Capacity
75 lb
Flange Size
5/16 to 1/2 in
Finish
Caddy Armour
Conduit Size
3/8 in
Application
Datacom and Low Voltage
Suitable For Use With
14-2 to 10-4 AWG MC/AC Cable
Outside Diameter
0.551 to 0.709 in
