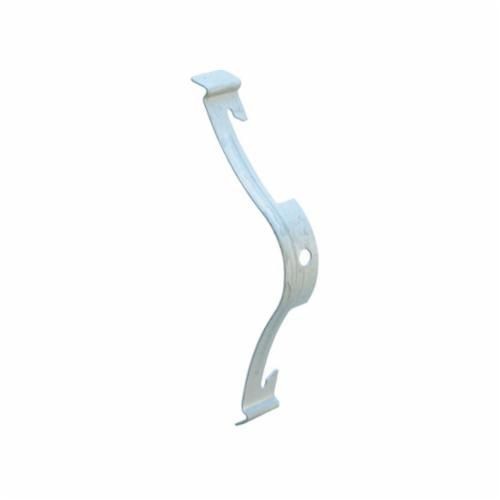

nVent ERICO K20 Conduit Clip, 1 in Conduit, 25/100 lb Load, 1.654 in OD, Spring Steel
nVent ERICO K20 Conduit Clip, 1 in Conduit, 25/100 lb Load, 1.654 in OD, Spring Steel
SKU: CADK20
Manufacturer Part Number: K20
UPC: 782856245209
Documents
Features
- Supports conduit to rod, wire or flange
- Can also be used for flexible metallic tubing, armored cable, portable cables, control tubes and communications cable
- No installation tools required
- 50 lb Transverse, 25 lb Vertical, 100 lb Horizontal load capacity
- 1 in, 1-1/4 in EMT, 3/4 in, 1 in Rigid conduit size
Specification
| Load Capacity | 25/100 lb |
|---|---|
| Outside Diameter | 1.654 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conduit Size | 1 in |
| Standard & Approvals | cULus Listed, RoHS Exempted |
| Application | Datacom and Low Voltage |
| Finish | Caddy Armour |
| Catalog ID | CADK20 |
| Material | Spring Steel |
