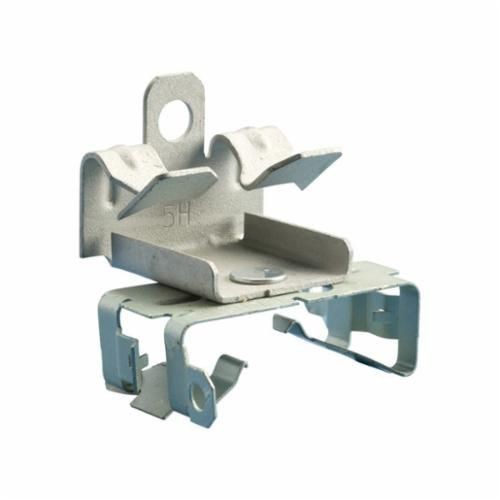

nVent ERICO MAC224 Cable to Flange Clip, 0.6 in OD, Spring Steel
nVent ERICO MAC224 Cable to Flange Clip, 0.6 in OD, Spring Steel
SKU: CADMAC224
Manufacturer Part Number: MAC224
UPC: 782856330752
Documents
Features
- Compliant with NEC® Article 300.4(d), allowing cable to be positioned a minimum of 1-1/4" from face of stud
- Compliant with CEC Rule 12-618 for support of MC/AC cable
- 14-2 to 10-3 in MC/AC cable size
Specification
| Material | Spring Steel |
|---|---|
| Mounting Type | Surface |
| Outside Diameter | 0.6 in |
| Suitable For Use With | 14-4 to 10-3 AWG MC/AC Cable |
| Application | Electrical |
| Standard & Approvals | cULus Listed, RoHS Exempted |
| Finish | Caddy Armour |
| Flange Size | 1/8 to 1/4 in |
