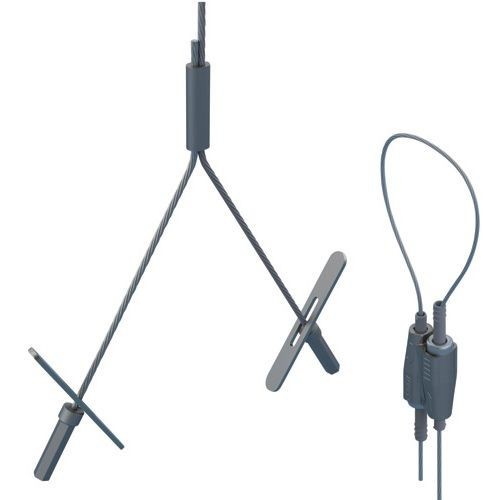

nVent ERICO SLK15Y300L3 Speed Link With Y-Toggle, Steel
nVent ERICO SLK15Y300L3 Speed Link With Y-Toggle, Steel
SKU: CADSLK15Y300L3
Manufacturer Part Number: SLK15Y300L3
UPC: 782856801573
Documents
Features
- Attaches to clearance holes in a variety of structures or hanging devices
- Steel/polypropylene/zinc alloy material
Specification
| Material | Steel |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=K0AOT7F0_0k&feature=youtu.be |
| Catalog ID | CADSLK15Y300L3 |
| Dimensions | 2-1/4 in H x 3/4 in W x 1/2 in THK |
| Finish | Electro Galvanized |
| Specifications | 1.5 mm Wire Rope Diameter, 9.9 ft Wire Rope Length, 11.8 in Y-Length, 90 deg Max Angle, 5:1 Static Load Safety Factor |
| Suitable For Use With | Acoustical, Ceiling and Partitioning, Datacom and Low Voltage, Electrical Fixing and Fastening |
| Application | For supporting lighting fixtures |
| Standard & Approvals | cULus Listed |
| Includes | Wire, Locking Device and Two Pre-Assembled Toggle End Fittings |
