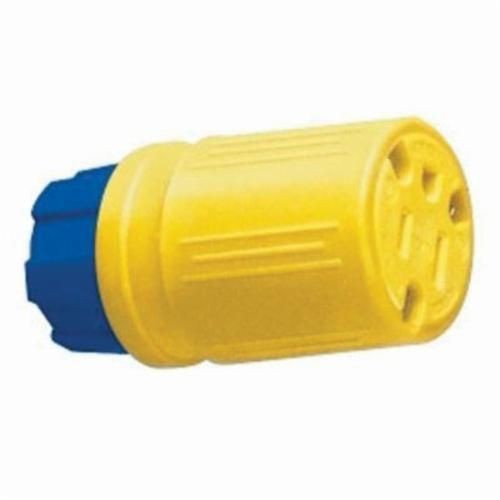

Ericson® Perma-Grip™ 1610-CG 1-Phase Grounding Watertight Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue/Safety Yellow
Ericson® Perma-Grip™ 1610-CG 1-Phase Grounding Watertight Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue/Safety Yellow
SKU: ERI1610-CG
Manufacturer Part Number: 1610-CG
UPC: 782862490075
Documents
Short Description
Features
- Transparent back-plate for easy inspection of individual wiring chamber
- Captive assembly and terminal screws reduce the risk of losing small parts
- Non-slip elastomeric housing with finger-grips
- High visibility Ericson dual-color safety system
- Nema configurations and a variety of specialty non-Nema devices
- Quick field assembly, no cable clamp screws to tighten, simply twist on the cord grip nut
- Water/mud/dust resistance provided by safety compression cord grips
- Keyed body and cover for easy alignment/assembly
- Color coded rubber cord-seal bushings accommodate a wide range of cable diameters
- Molded-in non-slip fingers grips makes devices easy to assemble and handle
- Withstand high impact, corrosion, oils, greases, solvents and other chemicals across -20 to 65 deg C
- Individual wire pockets help prevent flashovers
- Transparent back plate speeds wiring inspection
- 1 Phase
- Construction grade
Specification
| Grade | Industrial |
|---|---|
| Material | Elastomer |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -20 to 65 deg C |
| Voltage Rating | 125 VAC |
| Amperage Rating | 15 A |
| Dimensions | 1.6 in Dia x 3 in L |
| Color | Yellow/Blue |
| Standard & Approvals | CSA Certified, cETLus Listed, IEC Certified, OSHA Certified, RoHS Complaint, UL Listed |
