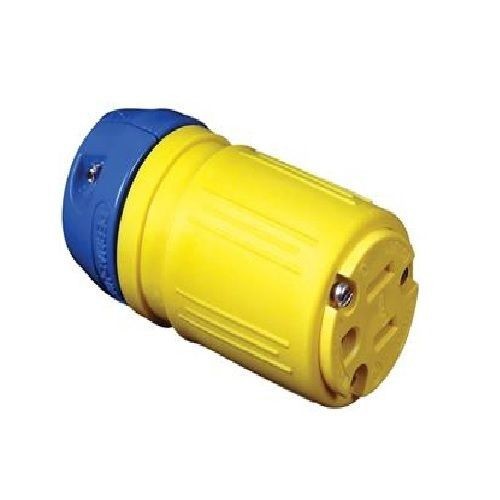

Ericson® Perma-Grip™ Perma-Link® Perma-Tite® 2 1614-C 1-Phase Grounding Straight Blade Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Blue/Yellow
Ericson® Perma-Grip™ Perma-Link® Perma-Tite® 2 1614-C 1-Phase Grounding Straight Blade Connector, 250 VAC, 15 A, 2 Poles, 3 Wires, Blue/Yellow
SKU: ERI1614-C
Manufacturer Part Number: 1614-C
UPC: 782862587522
Documents
Short Description
Features
- Two screw cable clamp secures wire and provides strain relief
- Solid brass blades for optimum electrical and mechanical performance
- Keyed body and cover for easy alignment/assembly
- Molded-in non-slip finger grips makes devices easy to assemble and handle
- Withstand high impact, corrosion, oils, greases, solvents and other chemicals across -20 to 100 deg C
- Individual wire pockets help prevent flashovers
- Transparent back plate speeds wiring inspection
- Flexibility of reverse cover design creates weather resistant connections by interchanging covers
- Watertight
- Ericson® exclusive brilliant blue and radiant yellow high visibility dual color safety system
Specification
| Grade | Light Industrial |
|---|---|
| Material | PBT |
| NEMA Rating | NEMA 6-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Blue/Yellow |
| Voltage Rating | 250 VAC |
| Application | Indoor and Construction Environment |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, cETLus Listed, cCSAus Certified, IEC Certified |
| Terminal Type | Dead Front Back Wired |
| Temperature Rating | -20 to 100 deg C |
| Dimensions | 1.6 x 3.08 in |
| Catalog ID | ERI1614-C |
| Type | 1-Phase Grounding |
