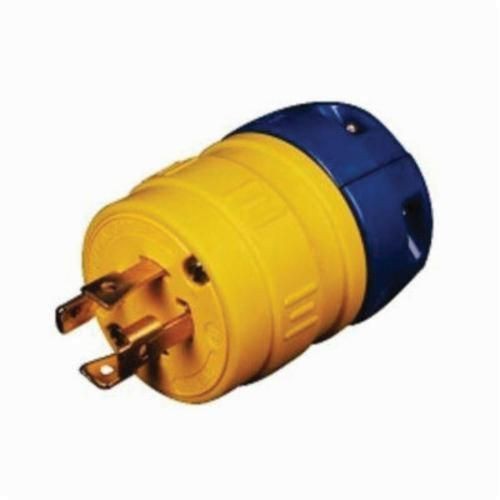

Ericson® Perma-Link® 2524-P 3-Phase Grounding Polarized Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Safety Yellow

Selected 2524-PEricson® Perma-Link® 2524-P 3-Phase Grounding Polarized Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Safety Yellow
2524-PEricson® Perma-Link® 2524-P 3-Phase Grounding Polarized Locking Plug, 480 VAC, 30 A, 3 Poles, 4 Wires, Safety Yellow

Documents

Short Description

United States patent number 4,021,092 was assigned to today's PermaLink® plugs and connectors which are classified among the most rugged and safest wiring devices available. They incorporate many of the same features as Ericson Perma-Tite® 2 and Perma-Grip™ devices and utilize a two-screw cable clamp. Perma-Link® plugs and connectors are designed to provide many years of trouble-free service in the most demanding industrial and construction environments.

Features

  • Two-screw cable clamp secures wire and provides strain-relief
  • Solid brass blades for optimum electrical and mechanical performance
  • Keyed body and cover for easy alignment/assembly
  • Molded-in non-slip finger-grips makes devices easy to assemble and handle
  • Withstand high impact, corrosion, oils, greases, solvents and other chemicals across -20 to 100 deg C
  • Individual wire pockets help prevent flashovers
  • Transparent back plate speeds wiring inspection
  • Flexibility of reverse-cover design creates weather-resistant connections by interchanging covers
  • Ericson's exclusive brilliant blue and radiant yellow high visibility dual color safety system
  • Water tight and weather resistant
  • Elastomer body, brass blade
  • 3 phase
  • Grounding
  • Indoor environmental rating
  • Polarized

Specification

Grade
Industrial
Material
Elastomer
NEMA Rating
NEMA L16-30
Number Of Poles
3
Number of Wires
4
Voltage Rating
480 VAC
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
Amperage Rating
30 A
Dimensions
2.14 in Dia x 3.05 in L
Color
Yellow
