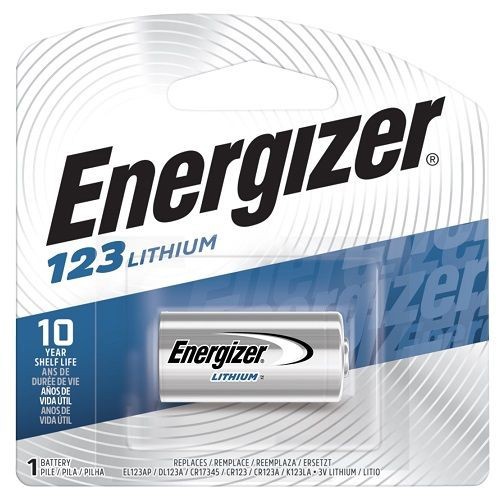

Eveready® EL123AP Battery Pack, Lithium Manganese Dioxide (Li/MnO2), 3 VDC Nominal, 1500 mAh Nominal, CR123A
Eveready® EL123AP Battery Pack, Lithium Manganese Dioxide (Li/MnO2), 3 VDC Nominal, 1500 mAh Nominal, CR123A
SKU: EVREL123APBP
Manufacturer Part Number: EL123AP
UPC: 039800041098
Documents
Features
- -40 to 140 deg F operating temperature
- Store in a cool, well ventilated area, elevated can result in shortened battery life
- -40 to 60 deg C storage
- Leak resistant construction Holds power for 10 years when not in use
- Nub positive terminal, flat negative terminal
- 2.5 V at 1000 mA
- 1500 mA continuous, 3500 mA pulse
Specification
| Internal Impedance | 100 Ohm |
|---|---|
| Maximum Discharge Current | 1500 mA |
| Nominal Capacity | 1500 mAh |
| Nominal Voltage | 3 VDC |
| Terminal Type | Flat/Nub |
| Application | For film and digital cameras |
| Standard & Approvals | ANSI-5018LC, IEC-CR17345, UL MH29980 Listed |
| Dimensions | 17 mm L x 17 mm W x 34.5 mm H |
| Battery Size | CR123A |
| Chemical System | Lithium-Manganese Dioxide |
