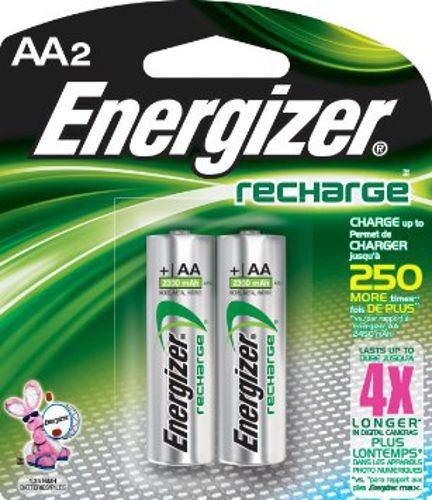

Eveready® NH15BP2 Rechargeable Battery Pack, NiMH, 1.2 VDC V Nominal, 2300 mAh Nominal, AA
Eveready® NH15BP2 Rechargeable Battery Pack, NiMH, 1.2 VDC V Nominal, 2300 mAh Nominal, AA
SKU: EVRNH15BP-2
Manufacturer Part Number: NH15BP2
UPC: 039800008688
Documents
Features
- 0 - 40 deg C operating, -20 to 30 deg C storage temperature
- 65 Plus/Minus 20 PCT humidity
- Store in a cool, well ventilated area, elevated temperatures can result in shortened battery life
- Plastic label
Specification
| Internal Impedance | 12 mOhm |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Chemical System | NiMH |
| Dimensions | 14.5 mm L x 14.5 mm W x 50.5 mm H |
| Catalog ID | EVRNH15BP-2 |
| Battery Size | AA |
| Nominal Voltage | 1.2 VDC |
| Nominal Capacity | 2300 mAh |
| Maximum Discharge Current | 460 mA |
| Standard & Approvals | ANSI-1.2H2, IEC-HR6 |
| Terminal Type | Flat/Nub |
