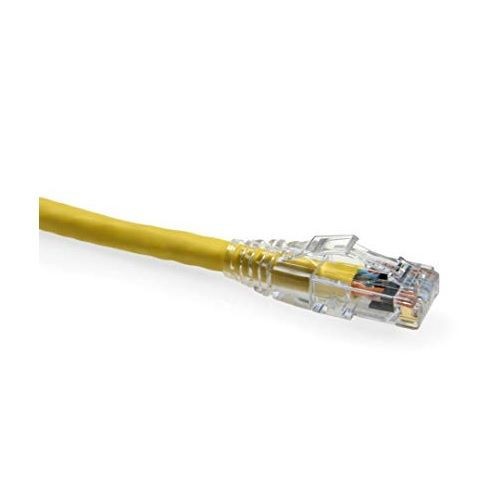

Leviton® eXtreme® 62460-15Y UTP Molded Boot Standard Patch Cord, CAT 6, 24 AWG Stranded Copper Conductor, 8P Modular Plug Connector, 15 ft L Cord, Yellow

Selected Leviton® eXtreme® 62460-15Y UTP Molded Boot Standard Patch Cord, CAT 6, 24 AWG Stranded Copper Conductor, 8P Modular Plug Connector, 15 ft L Cord, Yellow
Leviton® eXtreme® 62460-15Y UTP Molded Boot Standard Patch Cord, CAT 6, 24 AWG Stranded Copper Conductor, 8P Modular Plug Connector, 15 ft L Cord, Yellow

Documents

Short Description

Leviton eXtreme Cat 6 patch cords are designed to be used in typical Cat 6 channel applications. Leviton eXtreme Cat 6 systems are designed for use in high bandwidth applications such as Gigabit Ethernet.

Features

  • Stranded conductor for longer flex-life
  • Color matched cords and boots
  • T568B wiring to function in either T568A or T568B applications
  • Color matched rubber boot provides protection for plug
  • High impact, fire-retardant plastic rated UL 94V-0 plug body
  • 0.225 in OD
  • Patch cords shall be stranded conductor with an 8 position modular plug on each end
  • Patch cord plug shall be clear and contacts shall have industry standard, ANSI/TIA-1096-A compliant 50 micro inches of gold plating

Specification

Jacket Color
Yellow
Type
Standard
Conductor Size
24 AWG
Category Type
Cat 6
Conductor Type
UTP Stranded Copper
Cord Length
15 ft
Connector Type
RJ45 to RJ45
Standard & Approvals
ANSI/TIA-568-C.2, IEC 11801-B, ANSI/TIA-1096-A, cULus Listed, UL 444 CM Rated, IEEE Standard, RoHS Compliant
Application
For used in high bandwidth applications like gigabit ethernet
Series
62460
