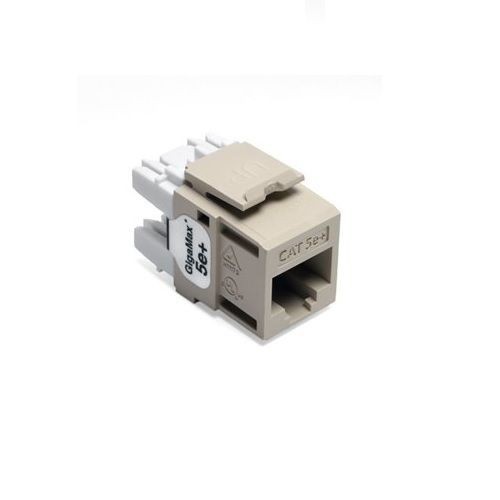

Leviton® GigaMax® QuickPort® 5G110-RI5 8-Conductor 8-Position Component Rated UTP Connector, Cat 5e Module, Surface/Panel Mount, 1 Ports, Plastic, Ivory
Leviton® GigaMax® QuickPort® 5G110-RI5 8-Conductor 8-Position Component Rated UTP Connector, Cat 5e Module, Surface/Panel Mount, 1 Ports, Plastic, Ivory
SKU: LEV5G110-RI5
Manufacturer Part Number: 5G110-RI5
UPC: 078477176993
Short Description
Features
- Fire retardant, patented retention force technology, unique pair separation tower allows for quick and easier termination, dual layer T568B/T568A wiring label simplifies punchdown
- Terminates 26 to 22 ga solid conductors, capable of multiple reterminations
- Gas tight IDC connectors prevent corrosion
- Patented retention force technology protects tines from damage and increases system longevity
- Pair separation tower design facilitates separation of conductors and minimizes untwisting
- 180 deg configuration allows for rear termination
- Capable of multiple reterminations
Specification
| Material | Plastic |
|---|---|
| Module Type | Cat 5e+ |
| Mounting Type | Panel |
| Number of Ports | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://youtu.be/4kndMLuqxzM?rel=0 |
| Catalog ID | LEV5G110-RI5 |
| Color | Ivory |
| Dimensions | 0.89 in H x 0.64 in W x 1.21 in D |
| Type | 8-Conductor 8-Position Component Rated |
| Application | Voice/Data, Video and Commercial Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, ANSI/TIA-568-C.2, TIA-1096-A, ISO/IEC 11801, cULus Listed, CSA Certified, IEEE 802.3at, IEEE 802.3bt, NEC Article 800, FCC Part 68, ACA Compliant, UL 94 V-0 Flammability Rating |
