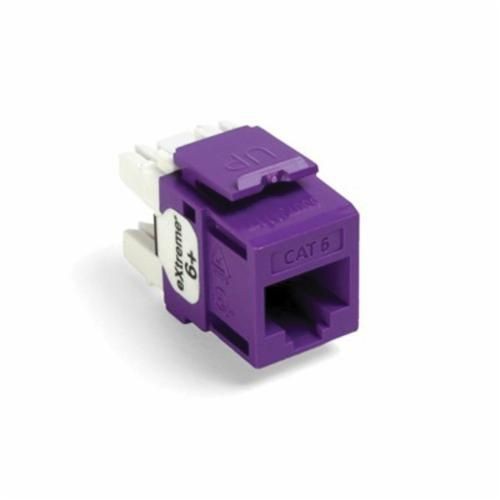

Leviton® eXtreme® QuickPort® 61110-RP6 8-Conductor 8-Position Channel/Component Rated UTP Connector, Cat 6 Module, Surface/Panel Mount, 1 Ports, Plastic, Purple
Leviton® eXtreme® QuickPort® 61110-RP6 8-Conductor 8-Position Channel/Component Rated UTP Connector, Cat 6 Module, Surface/Panel Mount, 1 Ports, Plastic, Purple
SKU: LEV61110-RP6
Manufacturer Part Number: 61110-RP6
UPC: 078477144688
Documents
Short Description
Features
- Permanently laser engraved fire retardant, gas tight IDC connector
- Patented retention force technology, unique pair separation tower allowing for quick and easier termination, dual layer T568B/T568A wiring label simplifies punchdown
- Terminates 26 to 22 ga solid conductors
- Capable of multiple reterminations
- Gas tight IDC connectors prevent corrosion
- Dual layer T568B/T568A wiring label simplifies punchdown
- Patented retention force technology protects tines from damage and increases system longevity
- Pair separation tower design facilitates separation of conductors and minimizes untwisting
- 180 deg configuration allows for rear termination
Specification
| Material | Plastic |
|---|---|
| Module Type | Cat 6+ |
| Mounting Type | Panel |
| Number of Ports | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | LEV61110-RP6 |
| Color | Purple |
| Dimensions | 0.89 in H x 0.64 in W x 1.21 in D |
| Type | 8-Conductor 8-Position Component Rated |
| Application | Voice/Data, Video and Commercial Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, ANSI/TIA-568-C.2, TIA-1096-A, IEC 11801 Class E, cULus Listed, CSA Certified, FCC Part 68, NEC Article 800, IEEE 802.3at, IEEE 802.3bt, UL 94 V-0 Flammability Rating |
