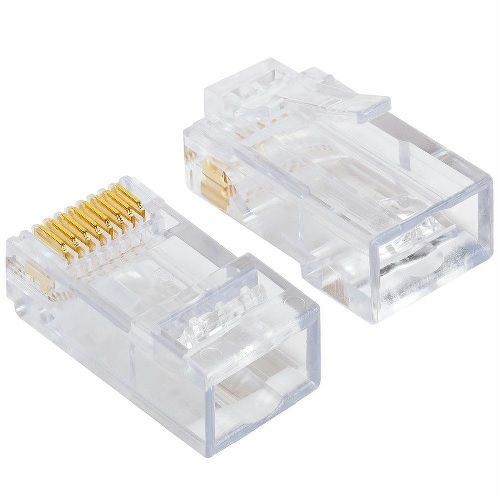

Platinum Tools® 100010C Cat 6 Telecom Connector, EZ-RJ45 Module

Short Description

The new patented EZ-RJ45 CAT6 connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized! crimp with the patented EZ-RJ45 crimp Tool... Crimps and trims in one cycle. (see Part number 100 004 or 100 054 EZ-RJPRO HD). Manufactured in the USA. Patented.

Features

  • EZ to verify wire sequence, simple one piece design no bars or liner
  • Works with solid or stranded wire
  • Faster terminations with reduced scrap
  • 0.041 in OD maximum insulated wire

Specification

Cable Type
Solid/Stranded
Category Type
Cat 6
Standard & Approvals
UL Listed, EIA/TIA B.2. FCC, TAA, RoHS Compliant
Application
For use in CAT6 compliant data network
Connector Type
RJ45 Connector
Cable Size
0.26 in OD
