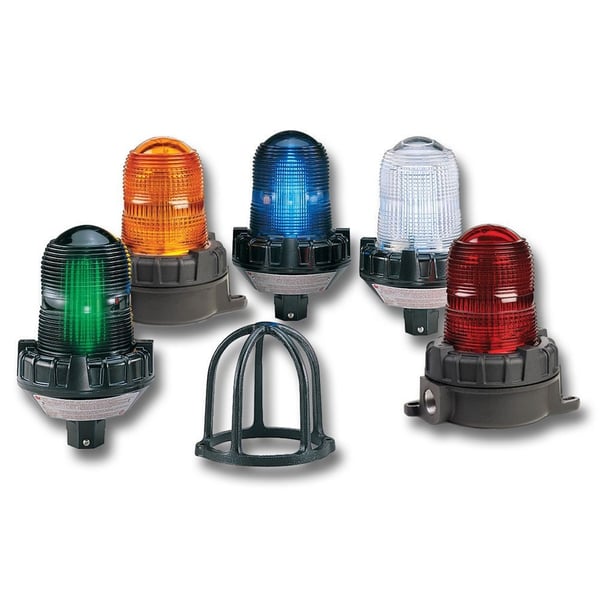

Federal Signal 191XL-S120240A 191XL-S Warning Light, 120 to 240 VAC, LED Lamp, 5-1/2 in Dia, Surface Mount, Amber Lens
Federal Signal 191XL-S120240A 191XL-S Warning Light, 120 to 240 VAC, LED Lamp, 5-1/2 in Dia, Surface Mount, Amber Lens
SKU: FED191XL-S120240A
Manufacturer Part Number: 191XL-S120240A
UPC: 782979230137
Documents
Features
- Increased shock and vibration resistance
- Flashing mode standard, configurable to steady-burn via circuit board jumper
- 3/4 in NPT pipe/surface mounting
- 50000 hr vibration resistant LED lamp
Specification
| Housing Material | Aluminum/Glass |
|---|---|
| Lamp Type | LED |
| Lens Color | Amber |
| Mounting Type | Surface |
| NEMA Rating | NEMA 4X/IP66/IP69K |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.13 to 0.21 A |
| Average Life | 50000 hr |
| Catalog ID | FED191XL-S120240A |
| Diameter | 5-1/2 in |
| Dimensions | 5-1/2 in W x 5-1/2 in D x 9-1/4 in H |
| Flash Rate | 60 fpm |
| Flash Type | Standard Flashing/Steady Burn |
| Series | 191XL-S |
| Shape | Cylindrical |
| Temperature Rating | -58 to 150 deg F |
| Voltage Rating | 120 to 240 VAC |
| Application | Marine, Indoor/Outdoor and Hazardous Location |
| Standard & Approvals | BAA Compliant, UL Listed, cUL Listed for Class I Div 2, Groups A, B, C, D, Class II Div 1, Groups E, F, G and Class III |
| Includes | Dome Guard |
