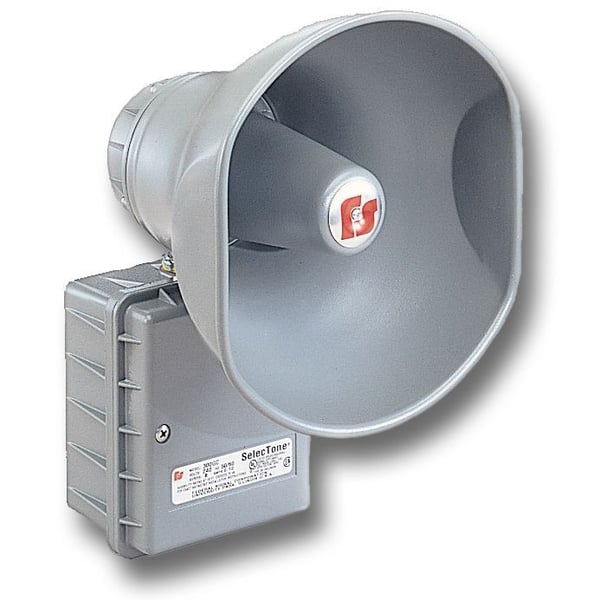

Federal Signal SelecTone® 300GC-024 Audible Signaling Device, 24 VDC, 0.67 A, 50/60 Hz, 110 dB Sound, CSFM Approved, cUL Listed, UL 1480

Federal Signal SelecTone® 300GC-024 Audible Signaling Device, 24 VDC, 0.67 A, 50/60 Hz, 110 dB Sound, CSFM Approved, cUL Listed, UL 1480
SKU: FED300GC-024
Manufacturer Part Number: 300GC-024
UPC: 782979200116
Documents
Short Description
Features
- Built-in gain control
- Produces 0 dBA to 110 dBA at 10 ft (0 dBA to 120 dBA at 1 m)
- Digital signal amplification
- NEMA 3R, IP54 enclosure
- Fused input and output
Specification
| Frequency Response | 50/60 Hz |
|---|---|
| Material | Die Cast Aluminum |
| Mounting Type | Surface |
| Power Source | 24 VDC, 0.67 A |
| Series | 300GC |
| Sound Level | 110 dB |
| Specifications | -67 to 150 deg F |
| Specifications Met | CSFM Approved, cUL Listed, UL 1480 |
| Application | Emergency Warning, Plant Evacuation, Start and Dismissal, Public Address Process Control Signaling and Indoor/Outdoor |
| Standard & Approvals | BAA Compliant, CSA Certified, UL 486 Class 1 MS15036-134 |
| Dimensions | 7.9 in W x 8.5 in D x 12.4 in H |
| Color | Gray |
