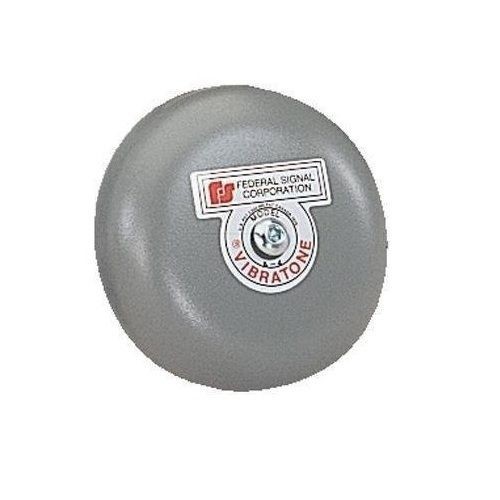

Federal Signal Vibratone® A4 Vibrating Bell Mechanism, 24 VAC, 0.4 A, 90 dB, Indoor/Outdoor, Surface Mounting, 4 in Gong

Selected A4Federal Signal Vibratone® A4 Vibrating Bell Mechanism, 24 VAC, 0.4 A, 90 dB, Indoor/Outdoor, Surface Mounting, 4 in Gong
A4Federal Signal Vibratone® A4 Vibrating Bell Mechanism, 24 VAC, 0.4 A, 90 dB, Indoor/Outdoor, Surface Mounting, 4 in Gong

Documents

Short Description

Federal Signal's Vibratone heavy duty product line utilizes a modular approach to combine gongs and mechanisms allowing for greater flexibility and selection. Three gong sizes are available; the Model A4 is four inches in diameter; the Model A6 is six inches in diameter; and the Model A10 is ten inches in diameter. Each larger gong produces a different tone and a higher dBa output. Vibrating bells produce a continuous ringing sound when voltage is applied. Federal Signal's Vibratone bells can be used in any industrial application, whether to signal danger or for start and dismissal. A variety of mounting accessories will accommodate almost any environment.

Features

  • Optional weatherproof backbox provides type 3R enclosure

Specification

Gong Size
4 in
Material
Steel
Mounting Type
Surface
Sound Level
108 - 112/98 - 102 dB at 1 m/10 ft
Voltage Rating
24 VAC
Application
Indoor and outdoor use
Standard & Approvals
UL/cUL Listed, CSA Certified, FM Approved
Amperage Rating
0.4 A
Color
Gray
Dimensions
4 in H x 4 in W x 1-1/4 in D
