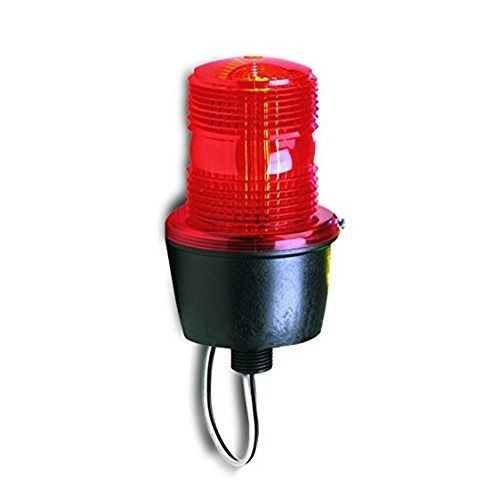

Federal Signal StreamLine® LP3M-120R LP3M Low Profile Strobe Light, 120 VAC, Strobe Tube Lamp, Red, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, 4X/IP66/IP69K NEMA Rating
Federal Signal StreamLine® LP3M-120R LP3M Low Profile Strobe Light, 120 VAC, Strobe Tube Lamp, Red, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, 4X/IP66/IP69K NEMA Rating
SKU: FEDLP3M-120R
Manufacturer Part Number: LP3M-120R
UPC: 782979207832
Short Description
Features
- PLC and triac compatible
- Screw-on lens provides easy access
- StreamLine® strobes feature high quality, long-life strobe tubes which are designed to reduce tungsten build-up for longer lamp maintenance cycles
- High quality dry-electrolyte capacitor used in StreamLine products runs cooler than those used in many competitive strobes, resulting in a more reliable product that won’t fail due to overheating
- LP3M features a 1/2 in NPT male pipe with locknut mount and 18 in wire leads
- 2.2 Joule output
- 51.5 cd ECP light output
Specification
| Housing Material | Polycarbonate Lens |
|---|---|
| Lamp Type | Strobe Tube |
| Lens Color | Red |
| Light Output | 175000 cd |
| Mounting Type | Surface |
| NEMA Rating | NEMA 4X, IP66 |
| Series | LP3M |
| Shape | Cylindrical |
| Temperature Rating | -31 to 150 deg F |
| Type | Low Profile |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL/cUL Listed, CE Certified, CSA Certified |
| Amperage Rating | 0.1 A |
| Dimensions | 3.13 in W x 3.13 in D x 5.82 in H |
| Application | For indoor/outdoor applications |
| Average Life | 7000 hr |
| Diameter | 3-1/8 in |
| Flash Rate | 65 - 95 fpm |
