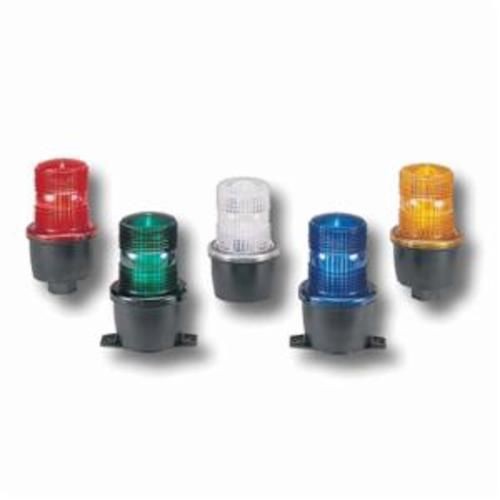

Federal Signal StreamLine® LP3P-012-048B LP3P Low Profile Strobe Light, 12 to 48 VDC, Strobe Tube Lamp, Blue, Surface Mount, ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed, 4X/IP66/IP69K NEMA Rating
Federal Signal StreamLine® LP3P-012-048B LP3P Low Profile Strobe Light, 12 to 48 VDC, Strobe Tube Lamp, Blue, Surface Mount, ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed, 4X/IP66/IP69K NEMA Rating
SKU: FEDLP3P-012-048B
Manufacturer Part Number: LP3P-012-048B
UPC: 782979203285
Documents
Short Description
Features
- PLC and triac compatible
- Screw-on lens provides easy access
- StreamLine® strobes feature high quality, long-life strobe tubes which are designed to reduce tungsten build-up for longer lamp maintenance cycles
- High quality dry-electrolyte capacitor used in StreamLine products runs cooler than those used in many competitive strobes, resulting in a more reliable product that won’t fail due to overheating
- 2.2 Joule output
- 51.5 cd ECP light output
Specification
| Housing Material | Polycarbonate Lens |
|---|---|
| Lamp Type | Strobe Tube |
| Lens Color | Blue |
| Light Output | 175000 cd |
| Mounting Type | Surface |
| NEMA Rating | NEMA 4X, IP66 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.44 - 0.1 A |
| Average Life | 7000 hr |
| Catalog ID | FEDLP3P-012-048B |
| Diameter | 3-1/8 in |
| Dimensions | 3.13 in W x 3.13 in D x 5.82 in H |
| Flash Rate | 65 - 95 fpm |
| Series | LP3P |
| Shape | Cylindrical |
| Temperature Rating | -31 to 150 deg F |
| Type | Low Profile |
| Voltage Rating | 12 to 48 VDC |
| Standard & Approvals | UL/cUL Listed, CE Certified, CSA Certified |
| Application | For indoor/outdoor applications |
