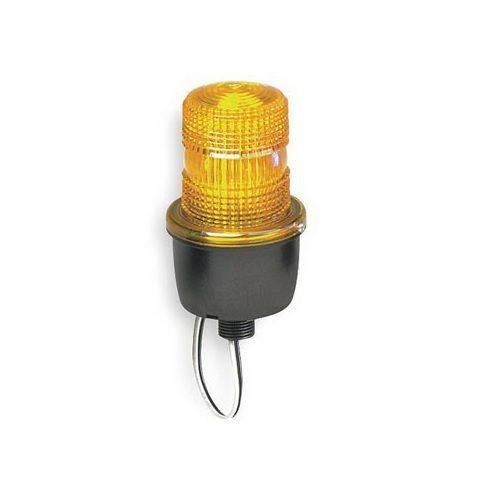

Federal Signal StreamLine® LP3PL-120A Low Profile Light, 120 VAC, LED Lamp, 3.13 in Dia, Surface Mount, Amber

Selected LP3PL-120AFederal Signal StreamLine® LP3PL-120A Low Profile Light, 120 VAC, LED Lamp, 3.13 in Dia, Surface Mount, Amber
LP3PL-120AFederal Signal StreamLine® LP3PL-120A Low Profile Light, 120 VAC, LED Lamp, 3.13 in Dia, Surface Mount, Amber

Short Description

Federal signal introduces the Model LP3L low profile LED light. The type 4X light is available in five LED/lens color combinations; Amber, Blue, clear, green and Red. All LP3 models feature the easy access screw on lens. The LP3L is offered in four mounting configurations; LP3PL with an integrated 1/2" NPT pipe mount, LP3ML features an integrated 1/2" NPT male pipe mount, LP3TL features a T formation base with 2 mounting holes for wall or flush mounting and the LP3SL features a three hole surface mounting configuration. The T-mount and surface mount units include surface gaskets to maintain the 4X installation. The LP3L series is available in 24VDC and 120VAC. All models include the vibration-resistant, double contact bayonet style 100,000 hour LED module. Like all StreamLine® products, the LP3L is designed with OEM applications in mind. It is economical, easy to install and attractive. Careful consideration has been given to the relationship between the LED light source and the lens design for maximum light output. When your application calls for a compact signal with unparalleled reliability, Federal Signal's StreamLine products are the clear choice.

Features

  • Five dome/lens colors available
  • Screw on lens
  • PLC compatible
  • Optional wire lens guard
  • Polycarbonate lens and housing
  • 1/2 in NPT pipe mounting

Specification

Housing Material
Polycarbonate
Lamp Type
LED
Lens Color
Amber
Light Output
3.2 J
Mounting Type
Surface
NEMA Rating
NEMA 4X
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=pqe02UvFS_0
Amperage Rating
0.13 A
Average Life
100000 hr
Catalog ID
FEDLP3PL-120A
Diameter
3.13 in
Dimensions
3.13 in W x 3.13 in D x 5.7 in H
Flash Type
Steady Burn
Shape
Cylindrical
Temperature Rating
-35 to 65 deg C
Voltage Rating
120 VAC
Standard & Approvals
UL and cUL Listed, CSA Certified
Application
Indoor and outdoor use
