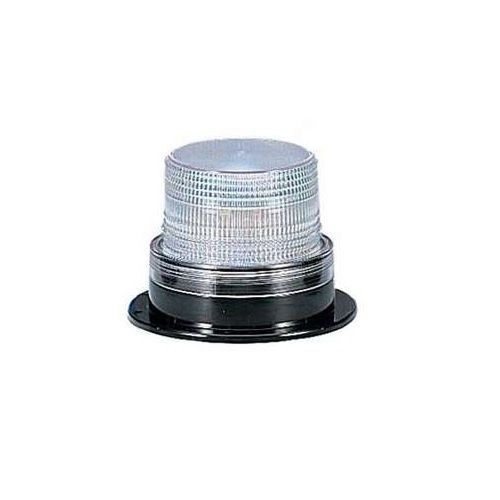

Federal Signal StreamLine® LP6-120C LP6 Low Profile Mini Strobe Light With Screw-On Dome, 120 VAC, Strobe Tube Lamp, Clear, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSA Certified, 4X NEMA Rating
Federal Signal StreamLine® LP6-120C LP6 Low Profile Mini Strobe Light With Screw-On Dome, 120 VAC, Strobe Tube Lamp, Clear, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSA Certified, 4X NEMA Rating
SKU: FEDLP6-120C
Manufacturer Part Number: LP6-120C
UPC: 782979200673
Documents
Short Description
Features
- Compact, economical
- Model LP6 is a very compact, high power strobe light designed for applications where space is critical
- Strobe light is ideal for forklift applications where head room is important
- LP6 also mounts easily to small control panels
- LP6 features a two joule power supply that works in multiple voltages from 12 - 48 VDC to 120 VAC
- LP6 housing utilizes a unique screw-on dome for easy relamping and service
- Polycarbonate base and lens combination gives this strobe excellent impact and corrosion resistance and meets Type 4X requirements
- 2.2 Joule output
- 51.5 cd ECP light output
Specification
| Housing Material | Polycarbonate Lens |
|---|---|
| Lamp Type | Strobe Tube |
| Lens Color | Clear |
| Light Output | 175000 cd |
| Mounting Type | Surface |
| NEMA Rating | NEMA 4X |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.1 A |
| Average Life | 7000 hr |
| Catalog ID | FEDLP6-120C |
| Diameter | 5 in |
| Dimensions | 5.06 in W x 5.06 in D x 3.63 in H |
| Flash Rate | 65 - 95 fpm |
| Series | LP6 |
| Shape | Cylindrical |
| Temperature Rating | -31 to 150 deg F |
| Type | Low Profile Screw-On |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL/cUL Listed, CSA Certified |
| Application | For indoor/outdoor applications |
| Includes | Wiring Harness and Mounting Hardware |
