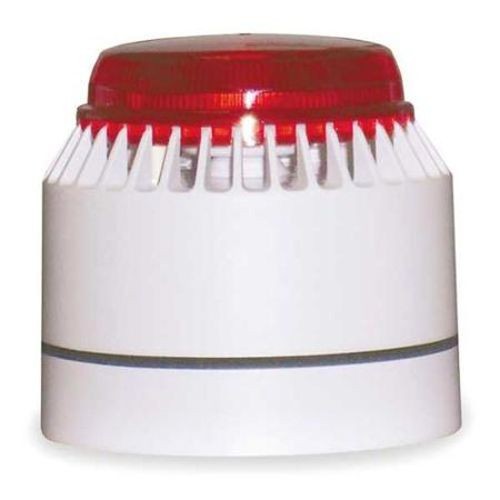

Federal Signal StreamLine® LP7-18-30R Audible/Visual Signal Combination Heavy Duty Low Profile Combination Strobe and Sounder, 18 to 28 VDC, Strobe Tube Lamp, 82 to 100 dB Sound, Indoor/Outdoor, Surface Mount, Red Lens

Selected Federal Signal StreamLine® LP7-18-30R Audible/Visual Signal Combination Heavy Duty Low Profile Combination Strobe and Sounder, 18 to 28 VDC, Strobe Tube Lamp, 82 to 100 dB Sound, Indoor/Outdoor, Surface Mount, Red Lens
Federal Signal StreamLine® LP7-18-30R Audible/Visual Signal Combination Heavy Duty Low Profile Combination Strobe and Sounder, 18 to 28 VDC, Strobe Tube Lamp, 82 to 100 dB Sound, Indoor/Outdoor, Surface Mount, Red Lens

Documents

Short Description

Providing an audible/visual warning, the LP7 sounder/strobe combines the features of a mini sounder with a fully integrated xenon strobe circuit. The result is an attractive unit suitable for internal or external locations where a combination of high sound output and visual signal is required. The strobe color choices include Amber, Clear, Green, Blue and Red. The LP7 has two switchable tone patterns: "Sweeping" and "Continuous".

Features

  • Fully integrated xenon strobe circuit
  • Piezo speaker
  • Sweeping and continuous tone
  • A bright xenon strobe that produces 0.7 Joules of flash energy with a flash frequency of 60 flashes per minute
  • The beacon will operate jointly with any tone selected
  • Ideal for wall or panel mount applications where low voltage is required

Specification

Lamp Type
Xenon
Lens Color
Red
Light Output
0.7 J
Material
ABS
Mounting Type
Surface
NEMA Rating
NEMA 4X, IP54
Series
LP7
Sound Level
92 - 110/82 - 100 dB at 1 m/10 ft
Temperature Rating
14 - 131 deg F
Type
Low Profile
Voltage Rating
18 to 30 VDC
Application
Indoor/Outdoor
Standard & Approvals
CE Compliant
Dimensions
3.66 in W x 3.66 in D x 3.5 in H
Average Life
10000 hr
Flash Rate
60 fpm
Amperage Rating
68 mA
