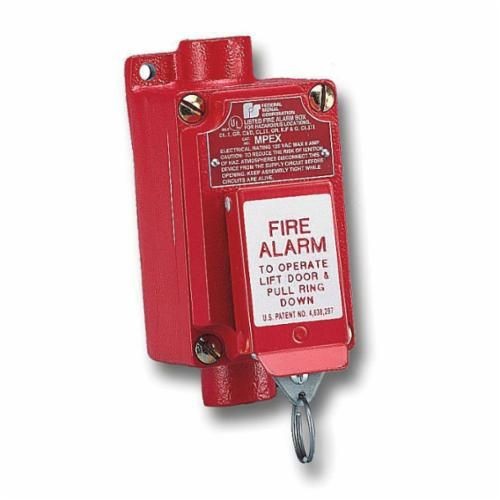

Federal Signal MPEX Explosion Proof Fire Alarm Pull Station, 120 VAC, 6 A, -13 to 104 deg F, Aluminum Alloy

Selected MPEXFederal Signal MPEX Explosion Proof Fire Alarm Pull Station, 120 VAC, 6 A, -13 to 104 deg F, Aluminum Alloy
MPEXFederal Signal MPEX Explosion Proof Fire Alarm Pull Station, 120 VAC, 6 A, -13 to 104 deg F, Aluminum Alloy

Short Description

Model MPEX explosion proof pull station is designed for harsh environments. The unit is rated for class I, Division 1, Groups C and D; class II, Division 1, Groups E, F and G; and class III. MPEX is rated NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G. The model MPEX explosion proof pull station is designed for hazardous locations where flammable gases, vapors, combustible dust or easily ignitable fibers are present. The unique swing up front cover exposes a pulldown ring which activates the alarm; this two step process prevents accidental activation. The MPEX is reset by depressing the shaft and returning the plate to its original position. Contacts on the unit are rated 120VAC, 60 Hz at 6 amps continuous. The enclosure is made of copper-free cast aluminum alloy. Installation is made easy via the feed through 3/4 conduit openings found on either end of the MPEX. It is painted bright red for high visibility and has clearly marked operating instructions on the face plate.

Features

  • Highly visible red enclosure
  • Lift cover and pull down ring to activate

Specification

Height
6.4 in
Material
Aluminum Alloy
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Catalog ID
FEDMPEX
Color
Red
Depth
4.1 in
Type
Explosionproof
Voltage Rating
120 VAC
Width
3.1 in
Application
For hazardous locations
Amperage Rating
6 A
Standard & Approvals
UL, ULC Listed, CSFM Approved, CSA Certified, Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; and Class III, MPEX is rated NEMA 7 for Groups C and D and NEMA 9 for Groups E, F and G
Temperature Rating
-13 to 104 deg F
Specifications
NEMA 7
Series
MPEX
