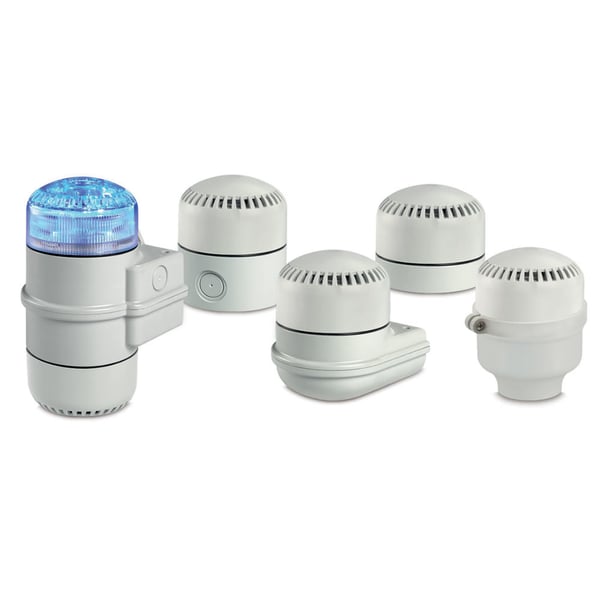

Federal Signal StreamLine® SLM700GY Modular Multi-Functional Electronic Sounder, 120 to 240 VAC, 12 to 24 VAC/VDC, 35/60/240/280 mA, 64 Tones, 65 to 105 dB Sound, Indoor/Outdoor, Surface Mount, Gray
Federal Signal StreamLine® SLM700GY Modular Multi-Functional Electronic Sounder, 120 to 240 VAC, 12 to 24 VAC/VDC, 35/60/240/280 mA, 64 Tones, 65 to 105 dB Sound, Indoor/Outdoor, Surface Mount, Gray
SKU: FEDSLM700GY
Manufacturer Part Number: SLM700GY
UPC: 782979232100
Documents
Features
- Remote tone selection
- Dual cable entries
- 15 tones onboard sounder
- Integrated DC and AC voltages
- Watertight to IP66/IP67 enclosure
- 15 tones with common power input that accepts an AC/DC power source
- -20 to 40 deg C (T6) , -20 to 55 deg C (T5), -20 to 70 deg C (T4) operating temperatures
Specification
| Series | SLM700 |
|---|---|
| Operating Temperature | -22 to 122 deg F |
| Color | Gray |
| Number of Tones | 64 |
| Sound Level | 65 to 105 dB |
| Amperage Rating | 35/60/240/280 mA |
| Material | Polycarbonate |
| Dimensions | 3.9 in W x 3.9 in D x 2.44 in H |
| Connection Type | NPN/PNP |
| Indoor/Outdoor | Indoor/Outdoor |
| Specifications Met | ARRA Compliant|BAA Compliant|RoHS Compliant|CE Certified|cUL Listed|UL Listed |
| Mounting Type | Surface |
| Type | Modular Multi-Functional |
| Voltage Rating | 120 to 240 VAC/12 to 24 VAC/VDC |
