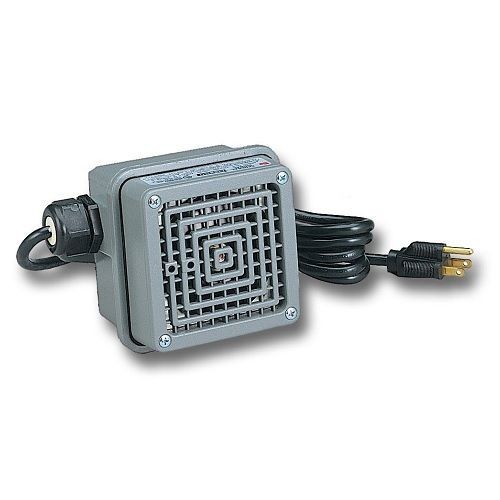

Federal Signal TelCom® TELH-120 TELH Telephone Extension Ringer Device, 120 VAC, 0.24 A, 100 dB Sound, Indoor, Surface Mount, ARRA Compliant|BAA Compliant|CSA Certified|FCC Approved|UL Listed for Indoor Use

Selected TELH-120Federal Signal TelCom® TELH-120 TELH Telephone Extension Ringer Device, 120 VAC, 0.24 A, 100 dB Sound, Indoor, Surface Mount, ARRA Compliant|BAA Compliant|CSA Certified|FCC Approved|UL Listed for Indoor Use
TELH-120Federal Signal TelCom® TELH-120 TELH Telephone Extension Ringer Device, 120 VAC, 0.24 A, 100 dB Sound, Indoor, Surface Mount, ARRA Compliant|BAA Compliant|CSA Certified|FCC Approved|UL Listed for Indoor Use

Documents

Short Description

Federal Signal's TELH Extension Ringer Device is a vibrating horn which is activated by the ringing signal of a telephone system. This device is specifically designed for use with an analog telephone. The ringing signal of 40 to 150 VAC, 16 to 60 Hz and local 120 VAC power is all that is required to activate a TelCom® signal. This TelCom device is intended to be mounted on a vertical surface such as a rigid wall or post. The TELH ringer has a three-conductor six-foot, 120 VAC power cord extending from the unit. Connecting the TelCom device to the telephone network is accomplished by running a modular telephone line cord (RJ11) to an existing jack or a duplex jack (customer supplied) into an existing modular jack. The TELH is designed with a durable zinc die-cast housing painted with gray powder coat enamel, and features an internal solid-state relay. Telcom devices are designed for high ambient noise areas such as manufacturing facilities, machine and sheet metal shops. They are also useful in large open areas such as a warehouse, loading dock or a large office.

Features

  • Horn signals incoming calls
  • Activated by ringing voltage (analog telephone only)
  • Type 1 enclosure
  • 90 VAC, 20 Hz ringing signal
  • 15.8 to 60 Hz, 40 to 150 VAC ring detection
  • 0 to 85% RH non-condensing (storage and operating) humidity range
  • 1 B FCC ringer equivalence

Specification

Material
Die-Cast Zinc
Mounting Type
Wall
Operating Temperature
32 to 112 deg F
Voltage Rating
120 VAC
Amperage Rating
0.24 A
Dimensions
4.53 in W x 3.66 in D x 5.1 in H
Color
Gray
Standard & Approvals
CSA Certified, FCC Approved, UL Listed
Application
For high ambient noise areas such as manufacturing facilities, machine and sheet metal shops
Sound Level
100 dB at 10 ft (110 dB at 1m)
