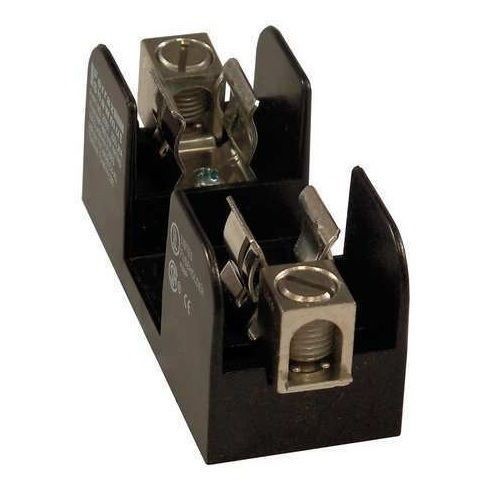

Mersen 20317 Open Style Fuse Block, 250 VAC/VDC, 30 A, Class H, 14 to 10 AWG Wire, 2 Poles

Selected Mersen 20317 Open Style Fuse Block, 250 VAC/VDC, 30 A, Class H, 14 to 10 AWG Wire, 2 Poles
Mersen 20317 Open Style Fuse Block, 250 VAC/VDC, 30 A, Class H, 14 to 10 AWG Wire, 2 Poles

Documents

Short Description

Mersen class H and K fuse blocks accommodate all class H and K power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60, 100 and 200A fuse blocks feature a unique adder block to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper.

Features

  • 10 kA short circuit current rating

Specification

Mounting Type
Threaded
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Connection Type
Screw
Type
Open Style
Wire Size
10 to 14 AWG Cu
Standard & Approvals
UL 4248-12 (Class R), File E52283, CSA Certified C22.2, Class 6225, File 32189, RoHS Compliant
Dimensions
3 in L x 2.03 in W x 1.38 in H
Class
H
Catalog ID
GOU20317
Number of Phases
2
Material
GFPC
Voltage Rating
250 VAC/VDC
Suitable For Use With
OT, RF, A2Y Types 1 and 3 OTN, CRN and NRN Fuses
