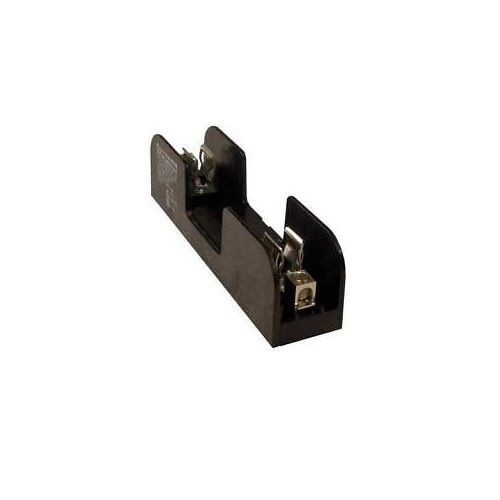

Mersen 60306 Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: H/K, 14 to 2 AWG Wire, 1 Poles

Selected Mersen 60306 Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: H/K, 14 to 2 AWG Wire, 1 Poles
Mersen 60306 Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: H/K, 14 to 2 AWG Wire, 1 Poles

Documents

Short Description

Mersen class H and K fuse holders accommodate all class H and K power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60, 100 and 200A fuse holders feature a unique adder block to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper.

Features

  • 10 kA short circuit current rating for Class H, 50 kA short circuit current rating for Class K

Specification

Fuse Holder Code
P
Material
GFPC
Mounting Type
Threaded
Number of Phases
1
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Catalog ID
GOU60306
Class
H/K
Connection Type
Box
Dimensions
7 in L x 1.63 in W x 2 in H
Suitable For Use With
OTS, RFS, A6Y Types 1 and 3 CRS, NRS Fuses
Type
Open Style
Voltage Rating
600 VAC/VDC
Wire Size
2 to 14 AWG Cu/Al
Standard & Approvals
UL 4248-6 (Class H) and 4248-9 (Class K), UL Listed, Guide IZLT, Guide IZLT2, File E52283, CSA Certified Class 6225, File 32169, RoHS Compliant
