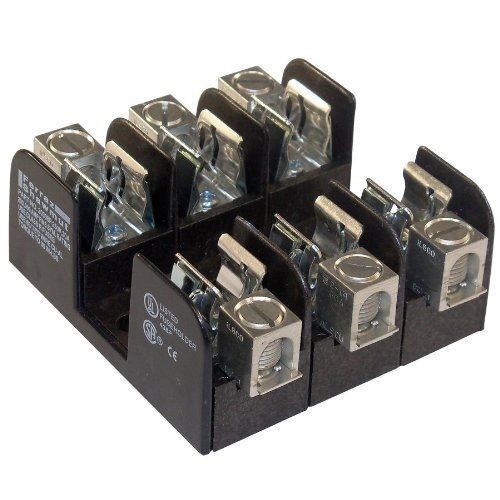

Mersen 60308SJ 6SJ Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: J, 14 to 2 AWG Wire, 3 Poles

Selected Mersen 60308SJ 6SJ Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: J, 14 to 2 AWG Wire, 3 Poles
Mersen 60308SJ 6SJ Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: J, 14 to 2 AWG Wire, 3 Poles

Documents

Short Description

Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips.

Features

  • 200 kA short circuit current rating

Specification

Fuse Holder Code
Z
Material
GFPC
Mounting Type
DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Class
J
Connection Type
Box
Dimensions
3.9 in L x 3.62 in W x 2.2 in H
Suitable For Use With
AJT, A4J and HSJ Fuses
Type
Open Style
Voltage Rating
600 VAC/VDC
Wire Size
14 to 2 AWG
Catalog ID
GOU60308SJ
Number of Phases
3
Standard & Approvals
UL 4248-8 File E52283, UL listed Guide IZLT File E52283, CSA C22.2, Class 6225, File 32169, RoHS Compliant
