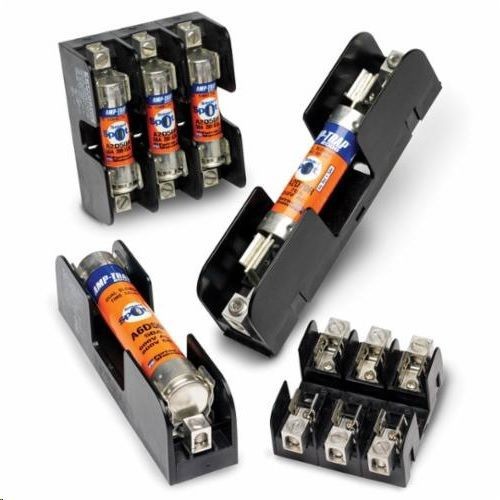

Mersen 60605 Adder Pole Open Style Fuse Block, 600 VAC/VDC, 60 A, Class: H/K, 14 to 2 AWG Wire

Selected GOU60605
GOU60605

Documents

Short Description

MERSEN class H, K fuse blocks accommodate 250 and 600 VAC power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 VAC. 30, 60 and 100 A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin plated copper, with a choice of spring reinforced or non-spring reinforced clips in 30 and 60 A. Clips 100 A and above are spring reinforced.

Specification

Material
GFPC
Mounting Type
Threaded
Number of Phases
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
60 A
Class
H/K
Connection Type
Box
Suitable For Use With
OTS, RFS, A6Y Types 1,3 CRS, NRS Fuse
Type
Adder Pole Open Style
Voltage Rating
600 VAC/VDC
Wire Size
14 to 2 AWG
Standard & Approvals
RoHS Compliant, UL 4248-6 (Class H) and 4248-9 (Class K), Guide IZLT File No. E52283, UL Guide IZLT2, File No. E52283 Recognized, CSA C22.2 Class 6225-01 File No. 32169_0_000, CE Certified
Dimensions
7 in H x 1.46 in W x 2 in D
Catalog ID
GOU60605
