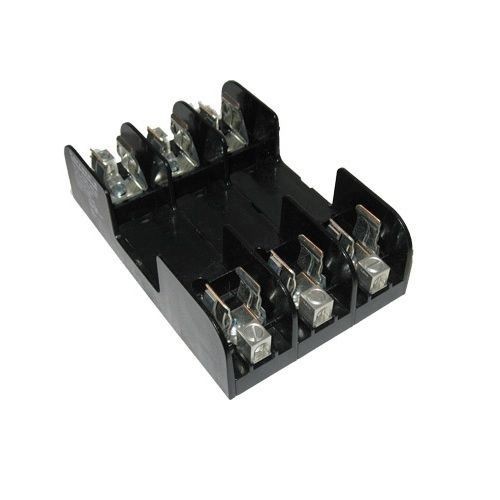

Mersen 60608R Open Style Fuse Block, 600 VAC/VDC, 60 A, Class R, 14 to 2 AWG Wire, 3 Poles

Selected Mersen 60608R Open Style Fuse Block, 600 VAC/VDC, 60 A, Class R, 14 to 2 AWG Wire, 3 Poles
Mersen 60608R Open Style Fuse Block, 600 VAC/VDC, 60 A, Class R, 14 to 2 AWG Wire, 3 Poles

Documents

Short Description

Mersen class R fuse holders accommodate all class R power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60, 100 and 200A fuse holders feature a unique adder block to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper.

Features

  • 200 kA short circuit current rating

Specification

Fuse Holder Code
Q
Material
GFPC
Mounting Type
Threaded
Number of Phases
3
Number Of Poles
3
Suitable For Use With
A6D-R, A6K-R and TRS-R Fuses
Type
Open Style
Voltage Rating
600 VAC/VDC
Wire Size
2 to 14 AWG Cu/Al
Standard & Approvals
UL 4248-12 (Class R), UL Listed, Guide IZLT, File E52283, Guide IZLT2, File E52283, CSA Certified Class 6225, File 32169, RoHS Compliant
Amperage Rating
60 A
Dimensions
7 in L x 4.55 in W x 2 in H
Class
R
Connection Type
Box
