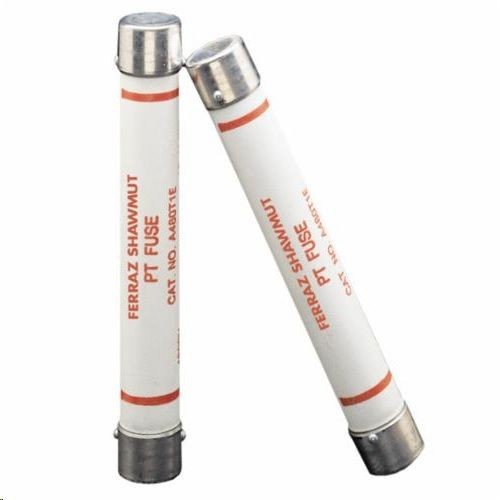

Mersen AMP-TRAP® 9F60BBD003 9F60 BBD Type EJ-1 Current Limiting Potential Transformer Fuse, 3 A, 5500 VAC, 63 kA, Class E, Ferrule Body
Mersen AMP-TRAP® 9F60BBD003 9F60 BBD Type EJ-1 Current Limiting Potential Transformer Fuse, 3 A, 5500 VAC, 63 kA, Class E, Ferrule Body
SKU: GOU9F60BBD003
Manufacturer Part Number: 9F60BBD003
UPC: 782001397906
Documents
Features
- PT fuses are current limiting fuses with high interrupting rating
- Ferrule mounting for standard clips and interchangeability with other brands of fuses
- Current limiting for superior equipment protection
- Non-venting for silent operation
- Metal embossed catalog number and manufacturing date for lasting identification
- Fiberglass melamine body provides dimensional stability in harsh industrial environments
- Blown fuse indicator to give positive identification of open fuse
- Compact size saves valuable mounting space
Specification
| Interrupt Rating | 63 kA |
|---|---|
| Material | GMG |
| Mounting Type | Clip |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Indicating/Non-Indicating | Indicating |
| Body Size | 1.562 in Dia x 7.375 in L |
| Body Style | Ferrule |
| Catalog ID | GOU9F60BBD003 |
| Class | E |
| Series | 9F60 BBD |
| Terminal Type | Ferrule |
| Type | Type EJ-1 Current Limiting |
| Voltage Rating | 5500 VAC |
| Application | Primary Protection For Potential Transformers Or Control Power Transformers |
| Amperage Rating | 3 A |
