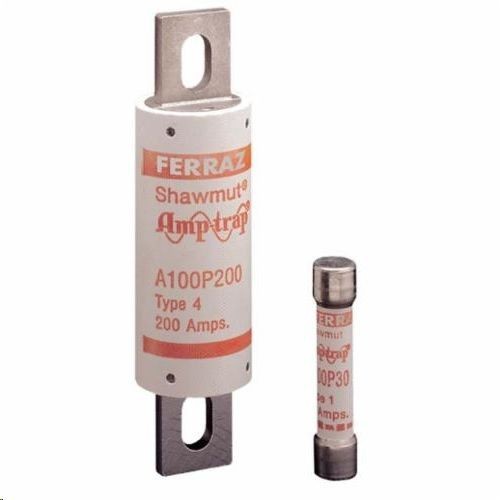

Mersen AMP-TRAP® A100P100-4 High Speed North American Style Semiconductor Fuse, 100 A, 1000 VAC, 750 VDC, 100 kA Interrupt, Class: Form 101, Cylindrical/Round Body

Selected Mersen AMP-TRAP® A100P100-4 High Speed North American Style Semiconductor Fuse, 100 A, 1000 VAC, 750 VDC, 100 kA Interrupt, Class: Form 101, Cylindrical/Round Body
Mersen AMP-TRAP® A100P100-4 High Speed North American Style Semiconductor Fuse, 100 A, 1000 VAC, 750 VDC, 100 kA Interrupt, Class: Form 101, Cylindrical/Round Body

Short Description

A100P AMP-TRAP®, form 101 semiconductor protection fuses are rated 1000 VAC, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 A, a wide range of high voltage applications can be served.

Features

  • Low I2t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Wide range of ampere ratings
  • Fast acting
  • Current limiting

Specification

Interrupt Rating
100 kA
Material
GMG
Mounting Type
Blade/Bolt-In
Minimum Order Qty
1
Order Interval
1
Rejection/Non-Rejection
Non-Rejection
Amperage Rating
100 A
Body Size
1.22 in Dia x 5 in L
Body Style
Cylindrical/Round
Catalog ID
GOUA100P100-4
Class
Form 101
Response Time
25 ms
Series
A100P
Terminal Type
Bolted
Type
High Speed North American Style
Voltage Rating
1000 VAC, 750 VDC
Application
For protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000 VAC or less semiconductor devices
Standard & Approvals
RoHS Compliant, UL File No. E76491, E60314, Guide No. JFHR2 Recognized, CSA Certified
