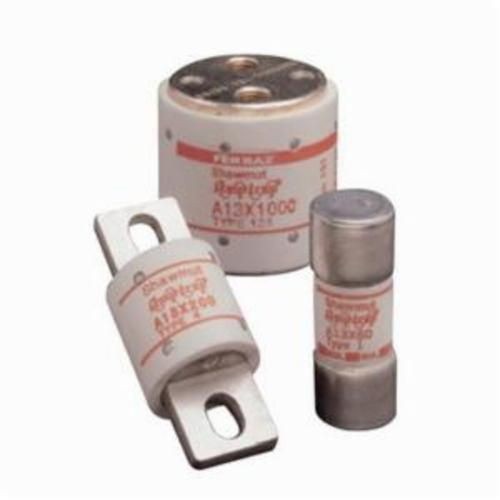

Mersen AMP-TRAP® A13X130-4 Current Limiting Fast Acting Semiconductor Fuse, 130 A, 130 VAC, 100 VDC, 43381 kA Interrupt

Selected A13X300-4Mersen AMP-TRAP® A13X130-4 Current Limiting Fast Acting Semiconductor Fuse, 130 A, 130 VAC, 100 VDC, 43381 kA Interrupt
A13X300-4Mersen AMP-TRAP® A13X130-4 Current Limiting Fast Acting Semiconductor Fuse, 130 A, 130 VAC, 100 VDC, 43381 kA Interrupt

Documents

Short Description

A13X Amp-Trap® Form 101 Semiconductor Protection fuses were designed for the specific protection of diodes and other semiconductor devices rated 130VAC or less. A13X fuses are very small for their ampere ratings, especially the hockey puck type in the higher ampere ratings.

Features

  • Low l²t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design
  • North American round style

Specification

Interrupt Rating
8/10 kA
Mounting Type
Bolt-On
Series
A13X
Terminal Type
Blade
Type
Current Limiting Fast Acting
Voltage Rating
130 VAC, 100 VDC
Application
For protection of drives, UPS, rectifiers and other equipment of 130 V or less
Standard & Approvals
UL Guide No. JFHR2, RoHS Complaint
Amperage Rating
130 A
Body Size
1.54 in Dia x 2.66 in L
