Mersen AMP-TRAP® A25X80-4 Current Limiting Fast Acting Semiconductor Fuse, 80 A, 250 VAC, 10.6 kA Interrupt

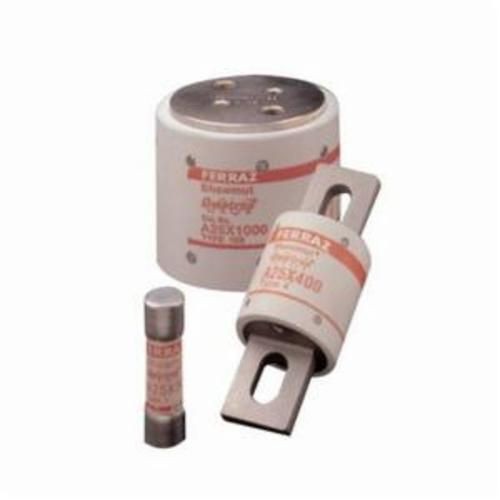

Selected A25X600-4Mersen AMP-TRAP® A25X40-4 Current Limiting Fast Acting Semiconductor Fuse, 40 A, 250 VAC, 100 kA Interrupt
A25X600-4Mersen AMP-TRAP® A25X40-4 Current Limiting Fast Acting Semiconductor Fuse, 40 A, 250 VAC, 100 kA Interrupt

Documents

Short Description

A25X Amp-Trap® Form 101 Semiconductor Protection fuses were designed for heavy duty rectifiers such as those used in the electro-chemical industry. Originally designed for diode protection, A25X fuses have been particularly reliable in heavy duty applications of many types.

Features

  • Low l²t minimizes damage to protected components on short circuit
  • Controlled arc voltage reduces stress to circuit components during fuse clearing
  • Choice of mounting types helps in equipment design
  • North American round style

Specification

Mounting Type
Bolt-On
Minimum Order Qty
1
Order Interval
1
Amperage Rating
80 A
Body Size
1.22 in Dia x 3.13 in L
Series
A25X
Terminal Type
Blade
Type
Current Limiting Fast Acting
Voltage Rating
250 VAC
Application
For protection of power semiconductors such as diodes, phase control SCR's and other power semiconductor devices
Standard & Approvals
UL Guide No. JFHR2, RoHS Compliant
Interrupt Rating
10.6 kA
Catalog ID
GOUA25X80-4
